MX25L1605A 16M-Bit CMOS Serial Falsh

MX25L1605A Description

ADVANCED INFORMATION MX25L1605A 16M-BIT [x 1] CMOS SERIAL FLASH .
The MX25L1605A is a CMOS 16,777,216 bit serial Flash memory, which is configured as 2,097,152 x 8 internally.

MX25L1605A Features

* GENERAL
* Serial Peripheral Interface (SPI) compatible
* Mode 0 and Mode 3
* 16,777,216 x 1 bit structure
* 512 Equal Sectors with 4K byte each - Any Sector can be erased individually
* 32 Equal Blocks with 64K byte each - Any Block can be erased individually

📥 Download Datasheet

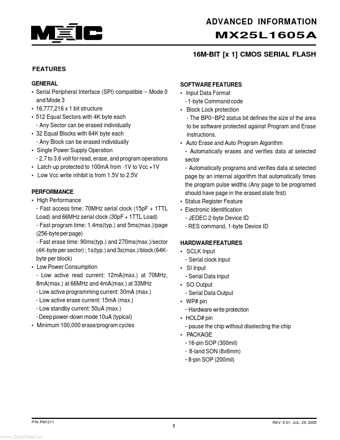

Preview of MX25L1605A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MX25L1605A
Manufacturer
MXIC
File Size
718.44 KB
Datasheet
MX25L1605A_MXIC.pdf
Description
16M-Bit CMOS Serial Falsh
