SB1060, SB1020 10.0AMP SCHOTTKY BARRIER RECTIFIERS

SB1060 Description

SB1020 THRU SB1080 10.0AMP SCHOTTKY BARRIER RECTIFIERS .

SB1060 Features

* . Low forward voltage drop . High current capability . High reliability . High surge current capability . Epitaxial construction MECHANICAL DATA . Case: Molded plastic . Epoxy: UL 94V-0 rate flame retardant . Lead: Axial leads, solder able per MIL-STD-202, method 208 guaranteed . Polarity: Color band

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB1060, SB1020. Please refer to the document for exact specifications by model.

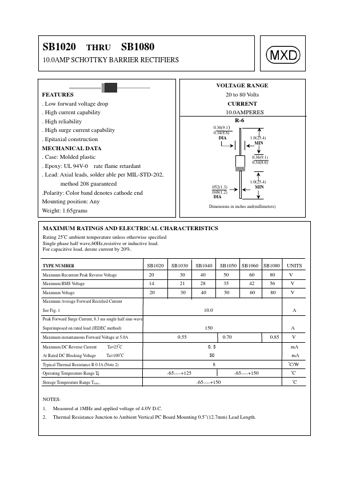

datasheet Preview Page 2

Datasheet Details

Part number
SB1060, SB1020
Manufacturer
MXD
File Size
46.74 KB
Datasheet
SB1020-MXD.pdf
Description
10.0AMP SCHOTTKY BARRIER RECTIFIERS
Note
This datasheet PDF includes multiple part numbers: SB1060, SB1020.
Please refer to the document for exact specifications by model.
