1N5844 5.0AMP SCHOTTKY BARRIER RECTIFIERS

1N5844 Description

www.DataSheet.co.kr 1N5844 5.0AMP SCHOTTKY BARRIER RECTIFIERS .

1N5844 Features

* . Low forward voltage drop . High current capability . High reliability . High surge current capability . Epitaxial construction MECHANICAL DATA . Case: Molded plastic . Epoxy: UL 94V-0 rate flame retardant . Lead: Axial leads, solder able per MIL-STD-202, method 208 guaranteed . Polarity: Color band

📥 Download Datasheet

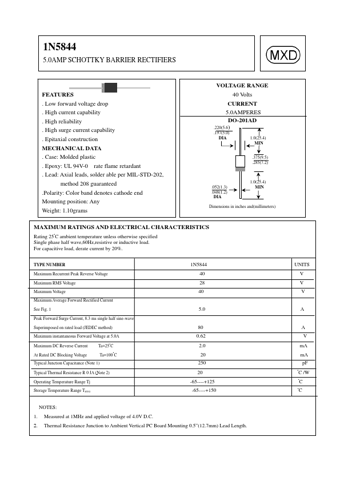

Preview of 1N5844 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1N5844
Manufacturer
MXD
File Size
163.35 KB
Datasheet
1N5844_MXD.pdf
Description
5.0AMP SCHOTTKY BARRIER RECTIFIERS
