LLA319R71A105MA01L, LLA219R71C224MA01L - Low ESL Ceramic Chip Capacitors

Name: LLA319R71A105MA01L
SKU: LLA319R71A105MA01L-685970

MURATA

The LLA319R71A105MA01L by MURATA is a Low ESL Ceramic Chip Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	LLA319R71A105MA01L, LLA219R71C224MA01L
Manufacturer	MURATA
File Size	592.78 KB
Description	Low ESL Ceramic Chip Capacitors
Datasheet	LLA219R71C224MA01L_MURATA.pdf
Note	This datasheet PDF includes multiple part numbers: LLA319R71A105MA01L, LLA219R71C224MA01L. Please refer to the document for exact specifications by model.

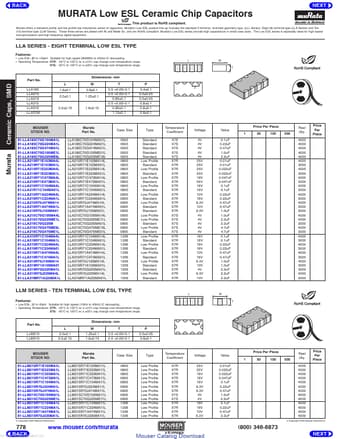

Additional preview pages of the LLA319R71A105MA01L datasheet.

Low ESL: 80 to 120pH. Suitable for high speed (800MHz to 4GHz) IC decoupling. Operating Temperature: X7R: -55°C to 125°C w/ a ±15% cap change over temperature range. X7S: -55°C to 125°C w/ a ±22% cap change over temperature range. L W T Part No. Dimensions: mm L 1.6±0.1 2.0±0.1 3.2±0.15 W 0.8±0.1 1.25±0.1 1.6±0.15 0.5 +0.05/-0.1 0.5 +0.05/-0.1 0.85±0.1 0.5 +0.05/-0.1 0.85±0.1 1.15±0.1 T 0.4±0.1 0.5±0.05 0.5±0.05 0.8±0.1 0.8±0.1 0.8±0.1 P P Ceramic Caps, SMD LLA185 LL.
