LLA219R71C224MA01L - Low ESL Ceramic Chip Capacitors

Name: LLA219R71C224MA01L
SKU: LLA219R71C224MA01L-685939

MURATA

The LLA219R71C224MA01L by MURATA is a Low ESL Ceramic Chip Capacitors. Below is the official datasheet preview.

Datasheet Details

Part number	LLA219R71C224MA01L
Manufacturer	MURATA
File Size	592.78 KB
Description	Low ESL Ceramic Chip Capacitors
Datasheet	LLA219R71C224MA01L_MURATA.pdf

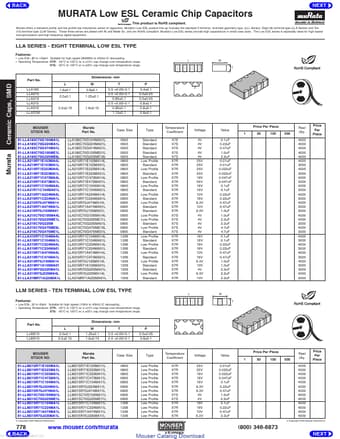

Additional preview pages of the LLA219R71C224MA01L datasheet.

Low ESL: 80 to 120pH. Suitable for high speed (800MHz to 4GHz) IC decoupling. Operating Temperature: X7R: -55°C to 125°C w/ a ±15% cap change over temperature range. X7S: -55°C to 125°C w/ a ±22% cap change over temperature range. L W T Part No. Dimensions: mm L 1.6±0.1 2.0±0.1 3.2±0.15 W 0.8±0.1 1.25±0.1 1.6±0.15 0.5 +0.05/-0.1 0.5 +0.05/-0.1 0.85±0.1 0.5 +0.05/-0.1 0.85±0.1 1.15±0.1 T 0.4±0.1 0.5±0.05 0.5±0.05 0.8±0.1 0.8±0.1 0.8±0.1 P P Ceramic Caps, SMD LLA185 LL.
