M7R, M7R Series 5.0 Volt HCMOS/TTL Compatible Surface Mount Oscillators

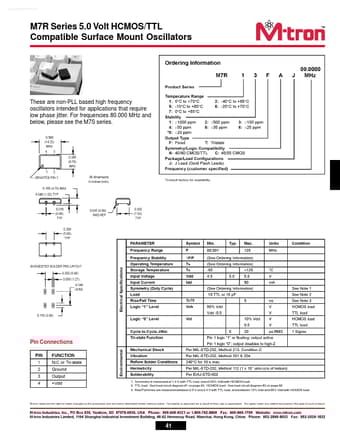

www.DataSheet4U.com M7R Series 5.0 Volt HCMOS/TTL Compatible Surface Mount Oscillators These are non-PLL based high frequency oscillators intended f

Applications

* that require low phase jitter. For frequencies 80.000 MHz and below, please see the M7S series.
* Consult factory for availability. Pin Connections 1. Symmetry is measured at 1.4 V with TTL load, and at 50% Vdd with HCMOS load. 2. TTL load - See load circuit diagram #1 on page 92. HCMOS load -
