M3141Sxxx, M31412DMP2N - Multiple Frequency VCXO

MTRONPTI

The M3141Sxxx by MTRONPTI is a Multiple Frequency VCXO. Below is the official datasheet preview.

📥 Download Datasheet

M3141Sxxx Multiple Frequency VCXO by MTRONPTI - Datasheet Preview — Official preview page of the M3141Sxxx Multiple Frequency VCXO datasheet (MTRONPTI).

Datasheet Details

Part number	M3141Sxxx, M31412DMP2N
Manufacturer	MTRONPTI
File Size	920.94 KB
Description	Multiple Frequency VCXO
Datasheet	M31412DMP2N_MTRONPTI.pdf
Note	This datasheet PDF includes multiple part numbers: M3141Sxxx, M31412DMP2N. Please refer to the document for exact specifications by model.

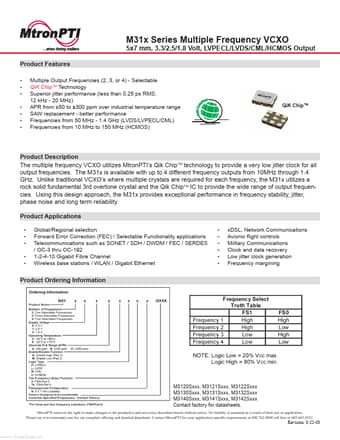

Additional preview pages of the M3141Sxxx datasheet.

M3141Sxxx Product details

Description

The multiple frequency VCXO utilizes MtronPTI’s Qik ChipTM technology to provide a very low jitter clock for all output frequencies.

Features

Multiple Output Frequencies (2, 3, or 4) - Selectable QiK ChipTM Technology Superior jitter performance (less than 0.25 ps RMS, 12 kHz - 20 MHz) APR from ±50 to ±300 ppm over industrial temperature range SAW replacement - better performance Frequencies from 50 MHz - 1.4 GHz (LVDS/LVPECL/CML) Frequencies from 10 MHz to 150 MHz (HCMOS) 5x7 mm, 3.3/2.5/1.8 Volt, LVPECL/LVDS/CML/HCMOS Output QiK Chip™ Product Descripti.
