MT6339N5 - 60V 10A MOSFET

Name: MT6339N5
SKU: MT6339N5-1581627

MT Semiconductor

📥 Download Datasheet

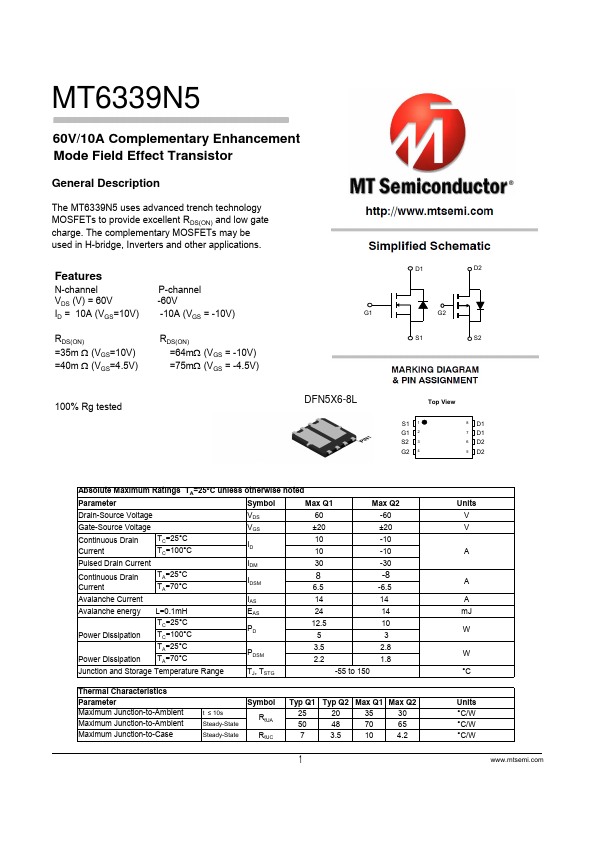

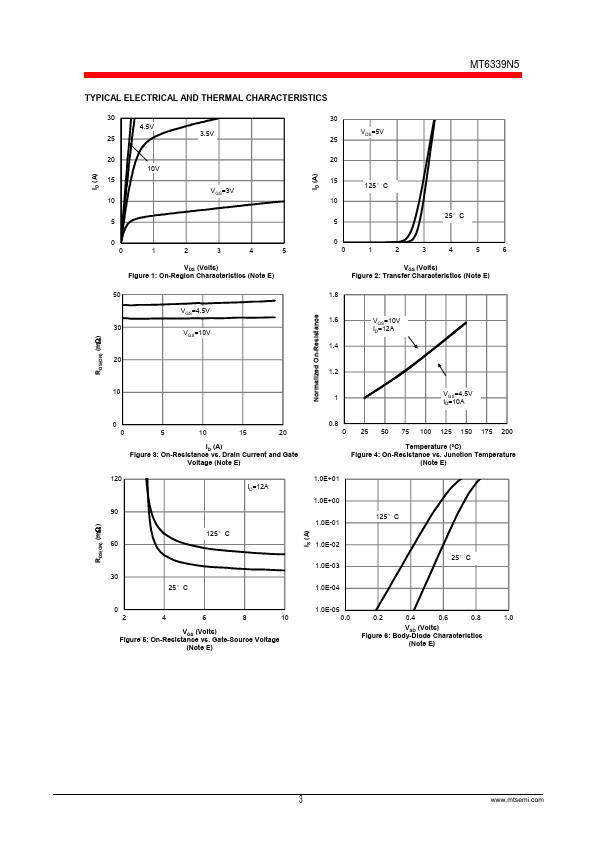

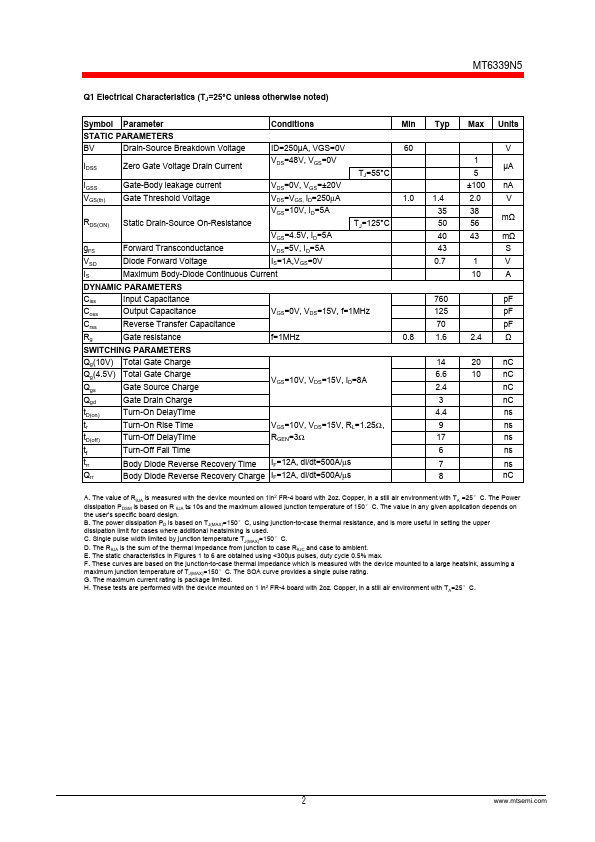

MT6339N5 Datasheet Preview — Preview of MT6339N5 PDF

Datasheet Details

Part number	MT6339N5
Manufacturer	MT Semiconductor
File Size	1.11 MB
Description	60V 10A MOSFET
Datasheet	MT6339N5-MTSemiconductor.pdf

MT6339N5 Product details

Description

The MT6339N5 uses advanced trench technology MOSFETs to provide excellent RDS(ON) and low gate charge.The complementary MOSFETs may be used in H-bridge, Inverters and other applications.

Features

N-channel P-channel VDS (V) = 60V -60V ID = 10A (VGS=10V) -10A (VGS = -10V) G1 RDS(ON) =35m Ω (VGS=10V) =40m Ω (VGS=4.5V) RDS(ON) =64mΩ (VGS = -10V) =75mΩ (VGS = -4.5V) 100% Rg tested DFN5X6-8L D1 D2 G2 S1 S2 Top View S1 1 G1 2 S2 3 G2 4 8 D1 7 D1 6 D2 5 D2 Absolute Maximum Ratings TA=25°C unless otherwise noted Parameter Symbol Max Q1 Max Q2 Drain-Source Voltage VDS 60 -60 Gate-Source Voltage Continuous Drain Current TC=25°C TC=100°C VGS ±20 ±20 10 -10 ID.
