MT3256 - 60V 50A N-Channel Power MOSFET

MT Semiconductor

📥 Download Datasheet

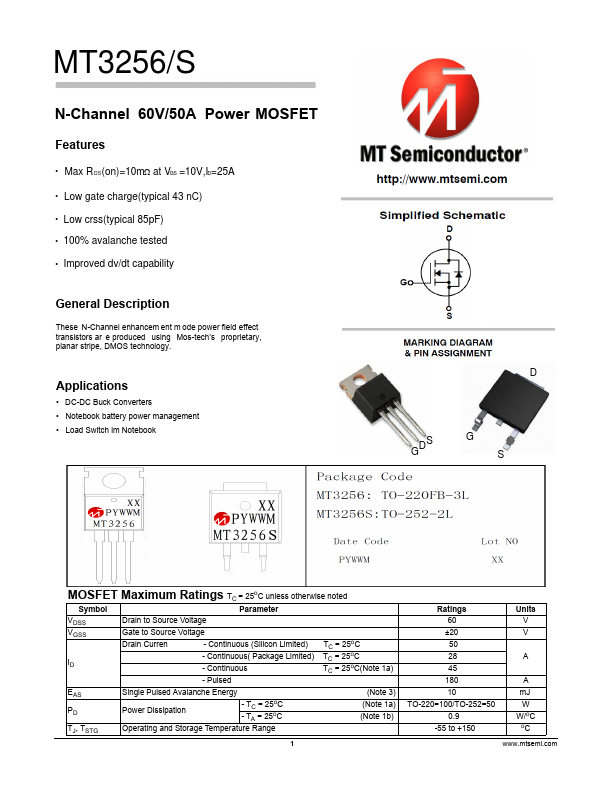

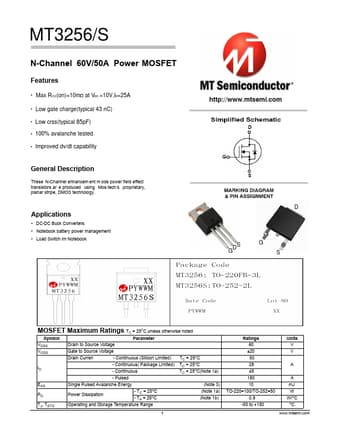

MT3256 Datasheet Preview — Preview of MT3256 PDF

Datasheet Details

Part number	MT3256
Manufacturer	MT Semiconductor
File Size	3.75 MB
Description	60V 50A N-Channel Power MOSFET
Datasheet	MT3256-MTSemiconductor.pdf

MT3256 Product details

Description

These N-Channel enhancem ent m ode power field effect transistors ar e produced using Mos-tech’s proprietary, planar stripe, DMOS technology. DC-DC Buck Converters Notebook battery power management Load Switch im Notebook MT3256 D GDS G S MOSFET Maximum Ratings TC = 25oC unless otherwise noted Symbol Parameter VDSS Drain to Source Voltage VGSS ID Gate to Source Voltage Drain Curren - Continuous (Silicon Limited) - Continuous( Package Limi

Features

Max RDS(on)=10mΩ at VGS =10V,ID=25A.
Low gate charge(typical 43 nC).
Low crss(typical 85pF).
100% avalanche tested.
Improved dv/dt capability General.
