MT3214B, MT3214 - 100V 120A N-Channel Power MOSFET

The MT3214B by MT Semiconductor is a 100V 120A N-Channel Power MOSFET. Below is the official datasheet preview.

📥 Download Datasheet

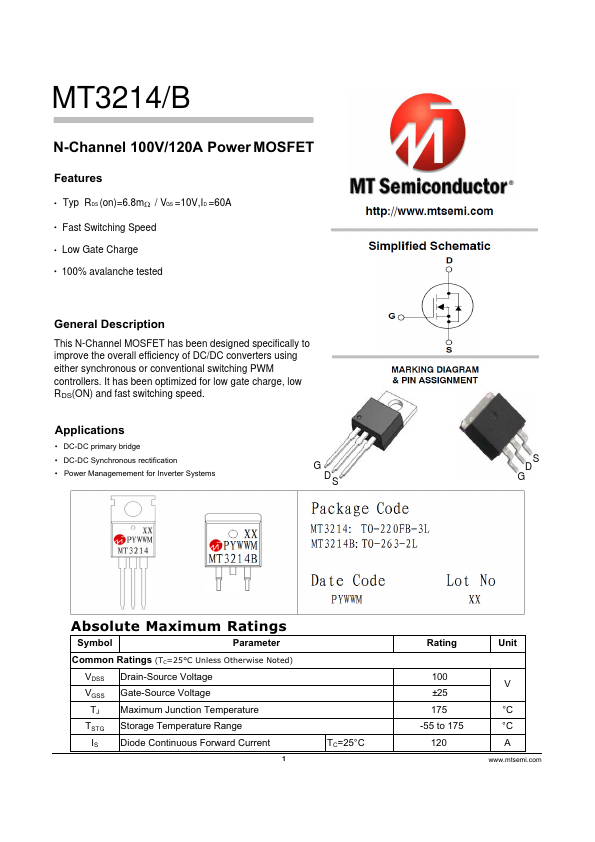

Official preview page of the MT3214B 100V 120A N-Channel Power MOSFET datasheet (MT Semiconductor).

Datasheet Details

Part number MT3214B, MT3214
Manufacturer MT Semiconductor
File Size 312.64 KB
Description 100V 120A N-Channel Power MOSFET
Datasheet download datasheet MT3214-MTSemiconductor.pdf
Note This datasheet PDF includes multiple part numbers: MT3214B, MT3214.
Please refer to the document for exact specifications by model.

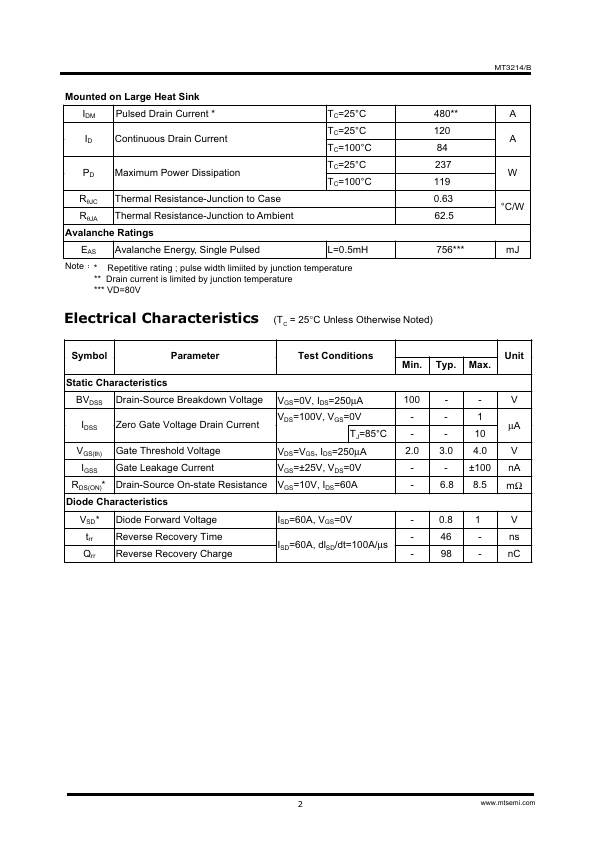

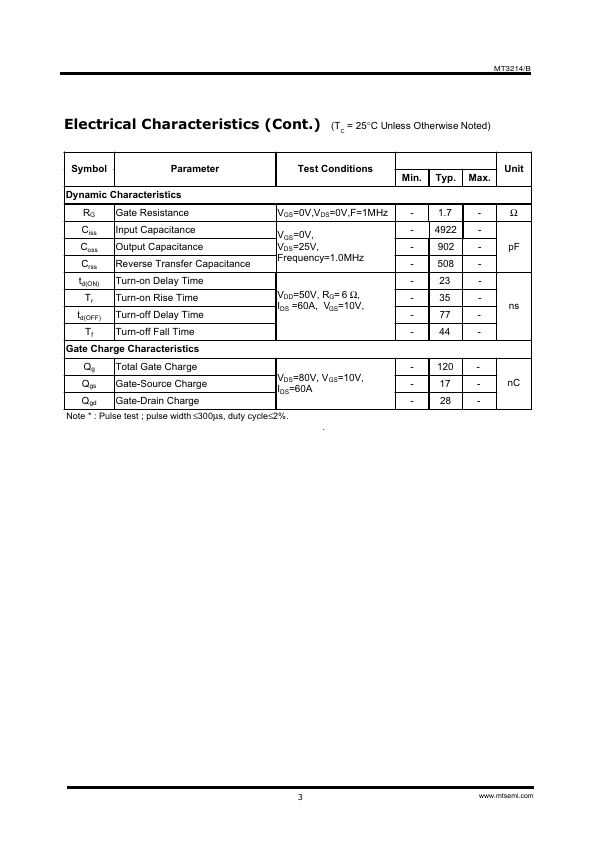

Additional preview pages of the MT3214B datasheet.
