MSK521 - DUAL +/- VOLTAGE REGULATOR

MSK

The MSK521 by MSK is a DUAL +/- VOLTAGE REGULATOR. Below is the official datasheet preview.

📥 Download Datasheet

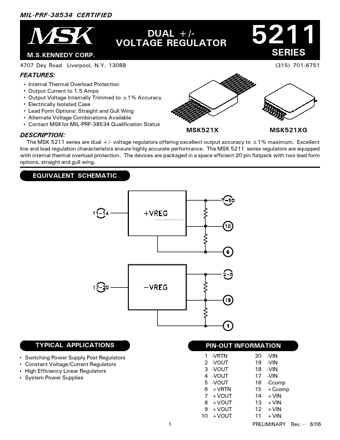

MSK521 DUAL +/- VOLTAGE REGULATOR by MSK - Datasheet Preview — Official preview page of the **MSK521** DUAL +/- VOLTAGE REGULATOR datasheet (MSK).

Datasheet Details

Part number	MSK521
Manufacturer	MSK
File Size	372.32 KB
Description	DUAL +/- VOLTAGE REGULATOR
Datasheet	MSK521_MSK.pdf
Additional preview pages of the MSK521 datasheet.

MSK521 Product details

Description

MSK521X MSK521XG The MSK 5211 series are dual +/- voltage regulators offering excellent output accuracy to ±1% maximum.Excellent line and load regulation characteristics ensure highly accurate performance.The MSK 5211 series regulators are equipped with internal thermal overload protection.The devices are packaged in a space efficient 20 pin flatpack with two lead form options, straight and gull wing.EQUIVALENT SCHEMATIC www.DataSheet4U.com TYPICAL APPLICATIONS Switching Power Supply

Features

Internal Thermal Overload Protection Output Current to 1.5 Amps Output Voltage Internally Trimmed to ±1% Accuracy Electrically Isolated Case Lead Form Options: Straight and Gull Wing Alternate Voltage Combinations Available Contact MSKfor MIL-PRF-38534 Qualification Status.
