MSK0004 - HIGH VOLTAGE OPERATIONAL AMPLIFIER

Description

The MSK 0004 is a high voltage operational amplifier for use in high performance signal conditioning applications, as well as resolver excitation designs.

These devices offer maximum reliability by providing internal output overload protection and thermal overload protection.

Features

  • MIL-PRF-38534.

📥 Download Datasheet

Datasheet Details

Part number MSK0004
Manufacturer MSK
File Size 214.81 KB
Description HIGH VOLTAGE OPERATIONAL AMPLIFIER
Datasheet download datasheet MSK0004 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
MSK0402-24V SMD Transient Voltage Suppressors msksemi
MSK110F Schottky Bridge Rectifier SEQ
MSK12F Schottky Bridge Rectifier SEQ
MSK131 ULTRA HIGH VOLTAGE VERY HIGH SPEED DIFFERENTIAL OP-AMP Mospec Semiconductor Corporation
MSK138 (MSK138 / MSK139) Class C High Power op Amp M.S. Kennedy

Other Datasheets by MSK

Part Number Description
MSK0002 BUFFER AMPLIFIER AMP
MSK0002RH BUFFER AMPLIFIER
MSK0006 HIGH LEVEL DIGITAL DRIVER
MSK0008 VERY HIGH LEVEL DIGITAL DRIVER
MSK0021 HIGH POWER OP-AMP

Full PDF Text Transcription

Click to expand full text

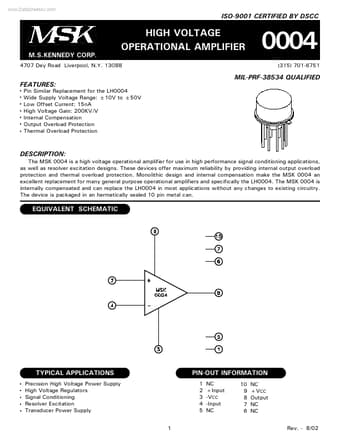

www.DataSheet4U.com ISO-9001 CERTIFIED BY DSCC M.S.KENNEDY CORP. HIGH VOLTAGE OPERATIONAL AMPLIFIER 0004 (315) 701-6751 4707 Dey Road Liverpool, N.Y. 13088 FEATURES: MIL-PRF-38534 QUALIFIED Pin Similar Replacement for the LH0004 Wide Supply Voltage Range: ±10V to ±50V Low Offset Current: 15nA High Voltage Gain: 200KV/V Internal Compensation Output Overload Protection Thermal Overload Protection DESCRIPTION: The MSK 0004 is a high voltage operational amplifier for use in high performance signal conditioning applications, as well as resolver excitation designs. These devices offer maximum reliability by providing internal output overload protection and thermal overload protection.
