mEZD72401A - 1A DC/DC Power Supply

Product Overview

MPS

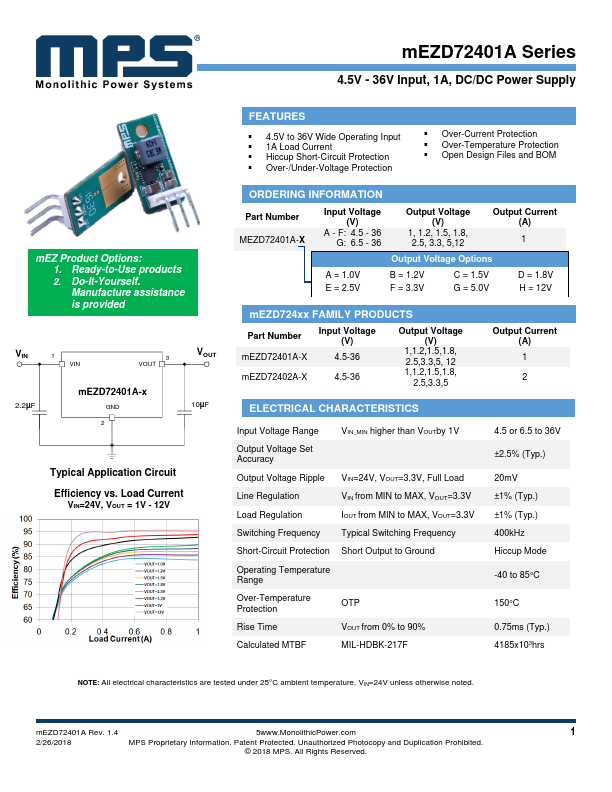

mEZD72401A 1A DC/DC Power Supply by MPS - Datasheet Preview — Datasheet preview – mEZD72401A

Datasheet Details

Part number	mEZD72401A
Manufacturer	MPS
File Size	449.71 KB
Description	1A DC/DC Power Supply
Datasheet	mEZD72401A Datasheet

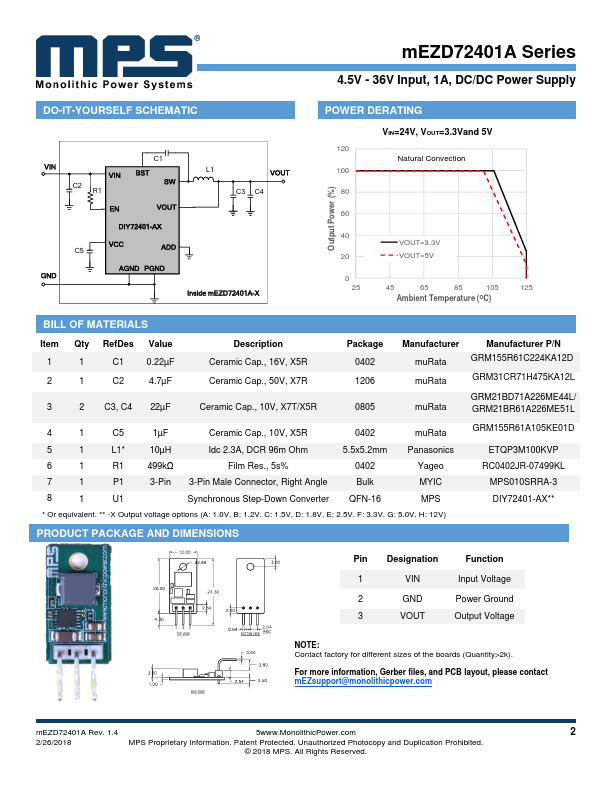

Additional preview pages of the mEZD72401A datasheet.

Product details

Description

Ceramic Cap., 16V, X5R Ceramic Cap., 50V, X7R Ceramic Cap., 10V, X7T/X5R Package 0402 1206 0805 Manufacturer muRata muRata muRata Manufacturer P/N GRM155R61C224KA12D GRM31CR71H475KA12L GRM21BD71A226ME44L/ GRM21BR61A226ME51L 4 1 C5 1µF Ceramic Cap., 10V, X5R 0402 muRata 5 1 L1 10µH Idc 2.3A, DCR 96m Ohm 5.5x5.2mm Panasonics 6 1 R1 499kΩ Film Res., 5s% 0402 Yageo 7 1 P1 3-Pin 3-Pin Male Connector, Right Angle Bulk MYIC 8 1 U1 Synchronous Step-Down Converter QF

Features

4.5V to 36V Wide Operating Input.
1A Load Current.
Hiccup Short-Circuit Protection.
Over-/Under-Voltage Protection.
Over-Current Protection.
Over-Temperature Protection.
Open Design Files and BOM mEZ Product Options: 1. Ready-to-Use products 2. Do-It-Yourself. Manufacture assistance is provided VIN 1 VIN 3 VOUT VOUT 2.2µF mEZD72401A-x GND 2 10µF Typical.
