NB680GD, NB680 Synchronous Buck Converter

NB680GD Description

NB680 28V, Low Iq, High Current, Fixed 3.3V-8A Synchronous Buck Converter with 100 mA LDO .
The NB680 is a fully integrated, high-frequency, synchronous, rectified, step-down, switch-mode converter with a fixed 3.

NB680GD Features

* include OC limit, OVP, UVP, and thermal shutdown. NB680 requires a minimum number of external components and is available in a QFN 2mm x 3mm package. FEATURES
* Wide 4.8 V to 28 V Operating Input Range
* Fixed 3.3 V Vout
* Ultrasonic Mode with Fs over 25 kHz
* 100 μA Low Quiescent C

NB680GD Applications

* Laptop Computers
* Tablet PCs
* Networking Systems
* Servers
* Personal Video Recorders
* Flat Panel Television and Monitors
* Distributed Power Systems All MPS parts are lead-free, halogen-free, and adhere to the RoHS directive. For MPS green status, please visit the M

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: NB680GD, NB680. Please refer to the document for exact specifications by model.

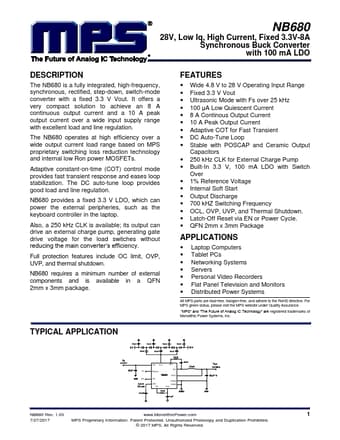

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NB680GD, NB680
Manufacturer
MPS
File Size
1.04 MB
Datasheet
NB680-MPS.pdf
Description
Synchronous Buck Converter
Note
This datasheet PDF includes multiple part numbers: NB680GD, NB680.
Please refer to the document for exact specifications by model.
