NB633 Synchronous Step-down Converter

NB633 Description

NB633 High Efficiency 3A, 24V, 500kHz Synchronous Step-down Converter .
The NB633 is a high frequency synchronous rectified step-down switch mode converter with built in internal power MOSFETs.

NB633 Features

* include OCP and thermal shut down. The NB633 requires a minimum number of readily available standard external components and is available in a space saving 3mm x 4mm 14-pin QFN package. END OF LIFE, REFER TO NB691A OR NB692 FEATURES
* Wide 4.5V to 24V Operating Input Range
* 3A Outp

NB633 Applications

* Notebook Systems and I/O Power
* Networking Systems
* Digital Set Top Boxes
* Personal Video Recorders
* Flat Panel Television and Monitors
* Distributed Power Systems For MPS green status, please visit MPS website under Quality Assurance. “MPS” and

📥 Download Datasheet

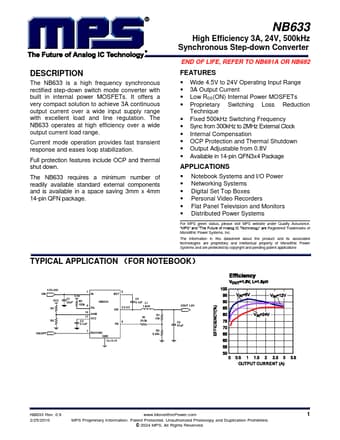

Preview of NB633 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
NB633
Manufacturer
MPS
File Size
609.82 KB
Datasheet
NB633-MPS.pdf
Description
Synchronous Step-down Converter
