MPQ2483DQ, MPQ2483 - 2.5A Programmable Frequency LED Driver

MPS

📥 Download Datasheet

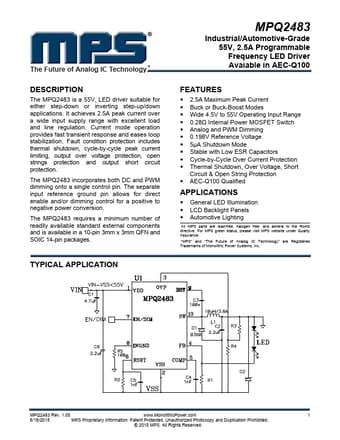

MPQ2483DQ Datasheet Preview — This datasheet PDF includes multiple part numbers: MPQ2483DQ, MPQ2483. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MPQ2483DQ, MPQ2483
Manufacturer	MPS
File Size	600.69 KB
Description	2.5A Programmable Frequency LED Driver
Datasheet	MPQ2483-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MPQ2483DQ, MPQ2483. Please refer to the document for exact specifications by model.

MPQ2483DQ Product details

Description

The MPQ2483 is a 55V, LED driver suitable for either step-down or inverting step-up/down applications.

Features

2.5A Maximum Peak Current.
Buck or Buck-Boost Modes.
Wide 4.5V to 55V Operating Input Range.
0.28Ω Internal Power MOSFET Switch.
Analog and PWM Dimming.
0.198V Reference Voltage.
5μA Shutdown Mode.
Stable with Low ESR Capacitors.
Cycle-by-Cycle Over Current Protection.
Thermal Shutdown, Over Voltage, Short Circuit & Open String Protection.
AEC-Q100 Qualified.
