Datasheet Details

Part number	MPQ2166A
Manufacturer	MPS
File Size	2.79 MB
Description	Synchronous Buck Regulator
Datasheet	MPQ2166A Datasheet

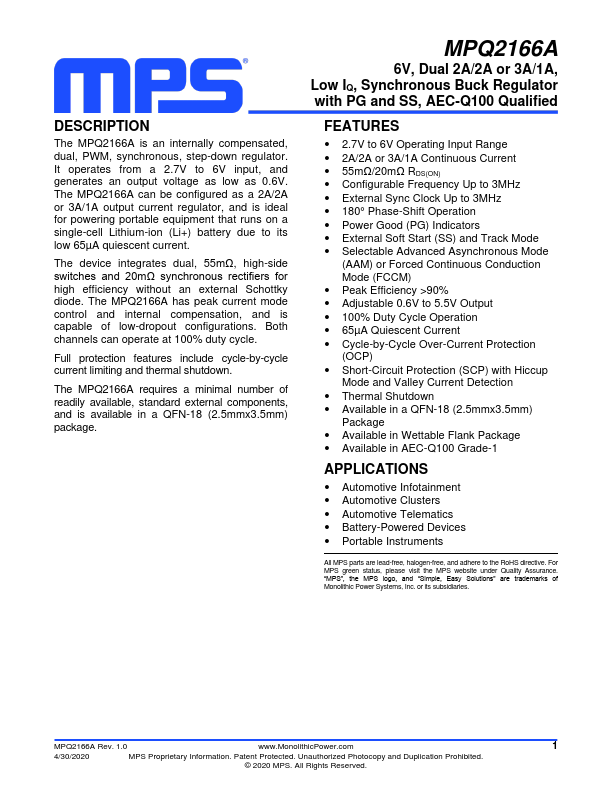

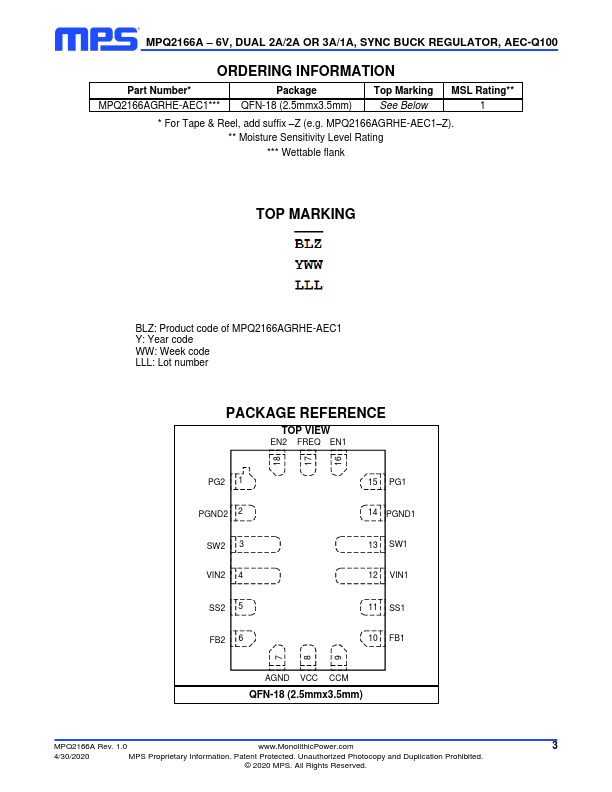

Additional preview pages of the MPQ2166A datasheet.

Product details

Description

The MPQ2166A is an internally compensated, dual, PWM, synchronous, step-down regulator.

Features

include cycle-by-cycle current limiting and thermal shutdown. The MPQ2166A requires a minimal number of readily available, standard external components, and is available in a QFN-18 (2.5mmx3.5mm) package. MPQ2166A 6V, Dual 2A/2A or 3A/1A, Low IQ, Synchronous Buck Regulator with PG and SS, AEC-Q100 Qualified.
