MPQ2026A - 40V 300mA Dual-Channel LDO

Product Overview

MPS

📥 Download Datasheet

MPQ2026A 40V 300mA Dual-Channel LDO by MPS - Datasheet Preview — Datasheet preview – MPQ2026A

Datasheet Details

Part number	MPQ2026A
Manufacturer	MPS
File Size	2.49 MB
Description	40V 300mA Dual-Channel LDO
Datasheet	MPQ2026A Datasheet

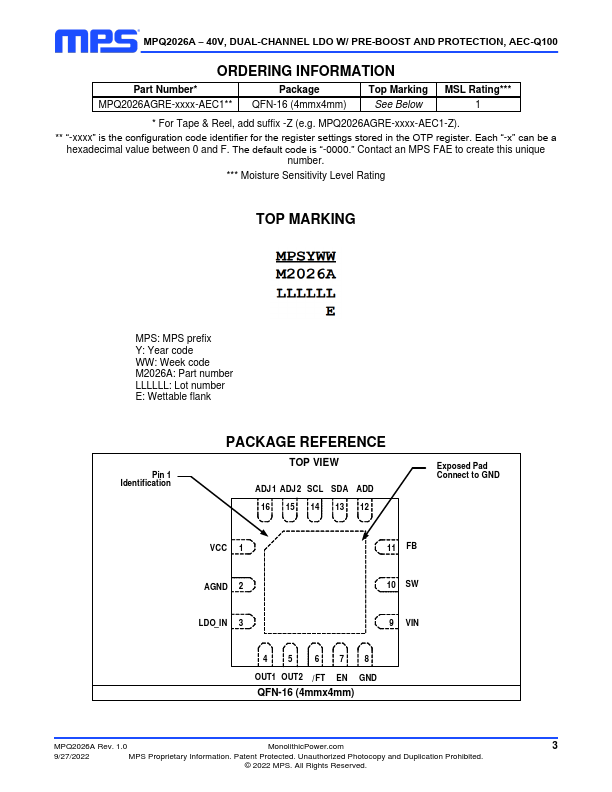

Additional preview pages of the MPQ2026A datasheet.

Product details

Description

The MPQ2026A is a dual-channel, low-dropout (LDO) regulator.

Features

Powerful Digital Capabilities: o No External Resistor Network for Output Voltage Settings o Configurable, Dual LDOs:.
300mA Continuous Output Current (IOUTx) per Channel.
1V to 13.6V Output Voltage (VOUTx) Range.
Over-Temperature Protection o Configurable, Asynchronous Pre-Boost Regulator:.
4A/40V Internal MOSFET.
6.5V to 15.9V Output Voltage (VOUT_BOOST) Range with 100mV Adjustable Steps.
400kHz or 2.2MHz Switching Frequency (fSW).
Over-Temperature P.
