MPM3820 - Synchronous Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

MPM3820 Synchronous Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MPM3820

Datasheet Details

Part number	MPM3820
Manufacturer	MPS
File Size	1.17 MB
Description	Synchronous Step-Down Converter
Datasheet	MPM3820 Datasheet

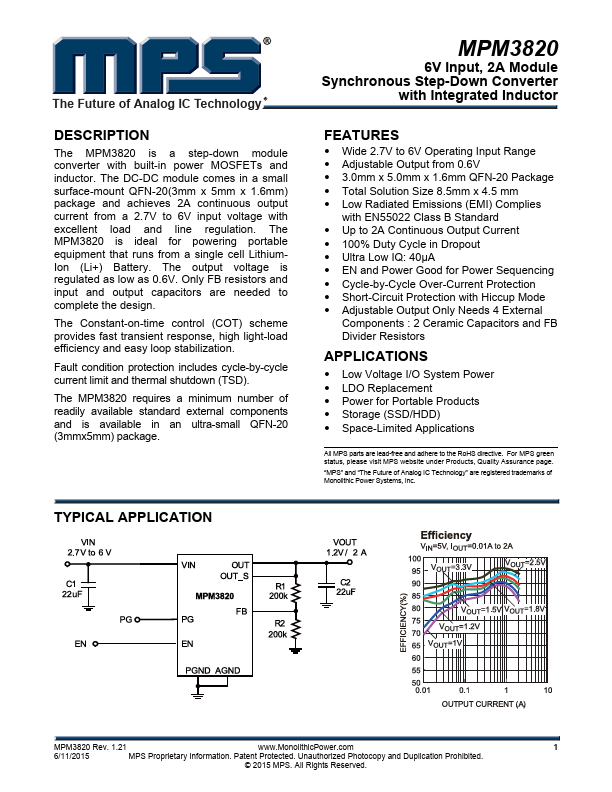

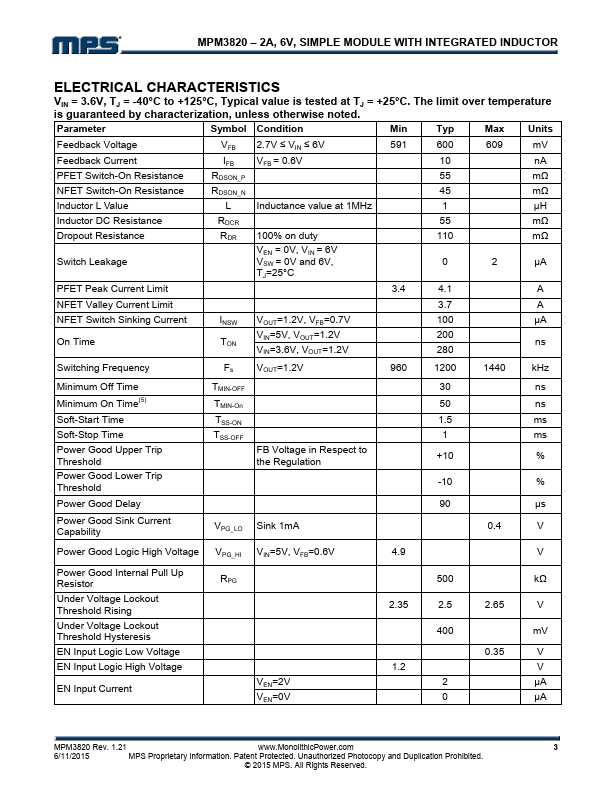

Additional preview pages of the MPM3820 datasheet.

Product details

Description

The MPM3820 is a step-down module converter with built-in power MOSFETs and inductor.

Features

Wide 2.7V to 6V Operating Input Range.
Adjustable Output from 0.6V.
3.0mm x 5.0mm x 1.6mm QFN-20 Package.
Total Solution Size 8.5mm x 4.5 mm.
Low Radiated Emissions (EMI) Complies with EN55022 Class B Standard.
Up to 2A Continuous Output Current.
100% Duty Cycle in Dropout.
Ultra Low IQ: 40μA.
EN and Power Good for Power Sequencing.
Cycle-by-Cycle Over-Current Protection.
Short-Circuit Protection.
