MP9485 - Step-Down Converter

Description

The MP9485 is a high-voltage, step-down, switching regulator that delivers up to 0.5A of current to the load.

It integrates a high-side, high-voltage power MOSFET with a current limit of 1.0A, typically.

Features

  • Wide 4.5V to 100V Input Range.
  • Hysteretic Control: No Compensation.
  • Up to 2MHz Switching Frequency.
  • PWM Dimming Control Input for LED.

📥 Download Datasheet

📁 Similar Datasheet

  • MP900 - Ultra High Sensitivity Gateable Photon Counting Module (PerkinElmer)
  • MP901 - Air-Quality Gas Sensor (Winsen)
  • MP9141 - Monolithic step-down switch mode converter (HUAFUQIN ELECTRONICS)
  • MP915 - Power Film Resistors (Caddock)
  • MP916 - Power Film Resistors (Caddock)
  • MP925 - Power Film Resistors (Caddock)
  • MP930 - Power Film Resistors (Caddock)
  • MP962-2 - Single Photon Counting Module (PerkinElmer Optoelectronics)
  • MP963-2 - Single Photon Counting Module (PerkinElmer Optoelectronics)
  • MP972-2 - Single Photon Counting Module (PerkinElmer Optoelectronics)
Other Datasheets by MPS
  • MP9485GN - Step-Down Converter
  • MP9486 - Step-Down Converter
  • MP9486A - Switching Current Limit Step-Down Converter
  • MP9486AGN - Switching Current Limit Step-Down Converter
  • MP9486GN - Step-Down Converter
  • MP9487 - Switching Current Limit Step-Down Converter
  • MP9487GN - Switching Current Limit Step-Down Converter
  • MP9488 - Step-Down Regulator

Full PDF Text Transcription

Click to expand full text

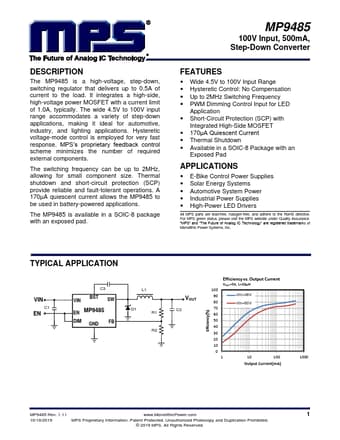

DESCRIPTION The MP9485 is a high-voltage, step-down, switching regulator that delivers up to 0.5A of current to the load. It integrates a high-side, high-voltage power MOSFET with a current limit of 1.0A, typically. The wide 4.5V to 100V input range accommodates a variety of step-down applications, making it ideal for automotive, industry, and lighting applications. Hysteretic voltage-mode control is employed for very fast response. MPS’s proprietary feedback control scheme minimizes the number of required external components. The switching frequency can be up to 2MHz, allowing for small component size. Thermal shutdown and short-circuit protection (SCP) provide reliable and fault-tolerant operations. A 170µA quiescent current allows the MP9485 to be used in battery-powered applications.
