MP8130 - Ultra Low Power High Voltage Op Amp

MPS

📥 Download Datasheet

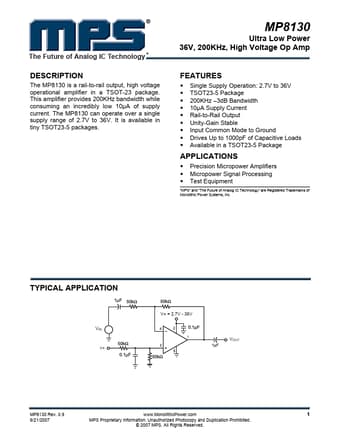

MP8130 Datasheet Preview — Preview of MP8130 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP8130
Manufacturer	MPS
File Size	475.38 KB
Description	Ultra Low Power High Voltage Op Amp
Datasheet	MP8130-MPS.pdf

MP8130 Product details

Description

The MP8130 is a rail-to-rail output, high voltage operational amplifier in a TSOT-23 package.

Features

Single Supply Operation: 2.7V to 36V.
TSOT23-5 Package.
200KHz.
3dB Bandwidth.
10µA Supply Current.
Rail-to-Rail Output.
Unity-Gain Stable.
Input Common Mode to Ground.
Drives Up to 1000pF of Capacitive Loads.
Available in a TSOT23-5 Package.
