MP6925 - Dual-LLC Synchronous Rectifier

Description

The MP6925 is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters.

The IC drives two N-channel MOSFETs, regulates their forward voltage drop to Vfwd (about 29mV), and turns the MOSFETs off before the switching current goes negative.

Features

  • Works with Standard and Logic Level MOSFETs.
  • Compatible with Energy Star.
  • Fast Turn-Off Total Delay of 35ns.
  • Wide 4.2V to 35V VDD Operating Range.
  • 175µA Low Quiescent Current in Light-Load Mode.
  • Supports CCM, CrCM, and DCM Operation.
  • Supports High-Side and Low-Side Rectification.
  • Available in an SOIC-8 Package.

📥 Download Datasheet

📁 Similar Datasheet

  • MP692 - Microprocessor Supervisory Circuits (Supertex)
  • MP690 - Microprocessor Supervisory Circuits (Supertex)
  • MP6901 - Power Transistor (Toshiba)
  • MP691 - Microprocessor Supervisory Circuits (Supertex)
  • MP6912 - Subminiature High Speed Data Acquisition System Module (Analogic)
  • MP693 - Microprocessor Supervisory Circuits (Supertex)
  • MP694 - Microprocessor Supervisory Circuits (Supertex)
  • MP695 - Microprocessor Supervisory Circuits (Supertex)
  • MP6 - AC-DC / Configurable (Emerson)
  • MP60-E - PENTIUM PRO PROCESSOR VOLTAGE REGULATOR MODULE (Semtech Corporation)
Other Datasheets by MPS
  • MP6925A - Synchronous Rectifier
  • MP6925AGS - Synchronous Rectifier
  • MP6925GS - Dual-LLC Synchronous Rectifier
  • MP6922 - Dual Fast Turn-off Intelligent Controller
  • MP6922DN - Dual Fast Turn-off Intelligent Controller
  • MP6922DS - Dual Fast Turn-off Intelligent Controller
  • MP6922DSE - Dual Fast Turn-off Intelligent Controller
  • MP6924 - Dual LLC Synchronous Rectifier

Full PDF Text Transcription

Click to expand full text

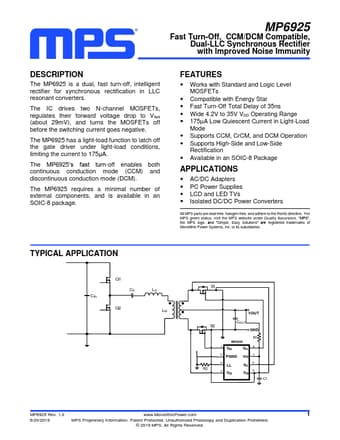

MP6925 Fast Turn-Off, CCM/DCM Compatible, Dual-LLC Synchronous Rectifier with lmproved Noise Immunity DESCRIPTION The MP6925 is a dual, fast turn-off, intelligent rectifier for synchronous rectification in LLC resonant converters. The IC drives two N-channel MOSFETs, regulates their forward voltage drop to Vfwd (about 29mV), and turns the MOSFETs off before the switching current goes negative. The MP6925 has a light-load function to latch off the gate driver under light-load conditions, limiting the current to 175μA. The MP6925’s fast turn-off enables both continuous conduction mode (CCM) and discontinuous conduction mode (DCM). The MP6925 requires a minimal number of external components, and is available in an SOIC-8 package.
