MP6908A - Fast Turn-Off Intelligent Rectifier

Product Overview

MPS

MP6908A Fast Turn-Off Intelligent Rectifier by MPS - Datasheet Preview — Datasheet preview – MP6908A

Datasheet Details

Part number	MP6908A
Manufacturer	MPS
File Size	796.77 KB
Description	Fast Turn-Off Intelligent Rectifier
Datasheet	MP6908A Datasheet

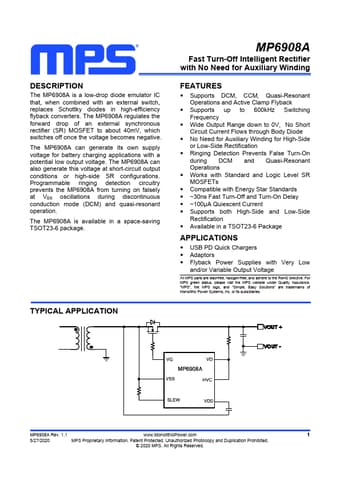

Additional preview pages of the MP6908A datasheet.

Product details

Description

The MP6908A is a low-drop diode emulator IC that, when combined with an external switch, replaces Schottky diodes in high-efficiency flyback converters.

Features

Supports DCM, CCM, Quasi-Resonant Operations and Active Clamp Flyback.
Supports up to 600kHz Switching Frequency.
Wide Output Range down to 0V, No Short Circuit Current Flows through Body Diode.
No Need for Auxiliary Winding for High-Side or Low-Side Rectification.
Ringing Detection Prevents False Turn-On during DCM and Quasi-Resonant Operations.
Works with Standard and Logic Level SR MOSFETs.
Compatible with Energy Star Standards.
~30ns Fast Turn-Off and.
