MP62550DGT, MP62550 - Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch

MPS

The MP62550DGT by MPS is a Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch. Below is the official datasheet preview.

📥 Download Datasheet

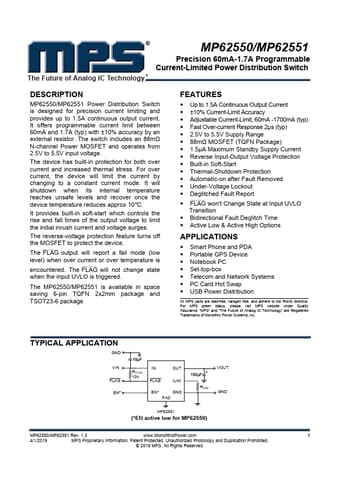

MP62550DGT Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch by MPS - Datasheet Preview — Official preview page of the **MP62550DGT** Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch datasheet (MPS).

Datasheet Details

Part number	MP62550DGT, MP62550
Manufacturer	MPS
File Size	603.79 KB
Description	Precision 60mA-1.7A Programmable Current-Limited Power Distribution Switch
Datasheet	MP62550-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP62550DGT, MP62550. Please refer to the document for exact specifications by model.
Additional preview pages of the MP62550DGT datasheet.

MP62550DGT Product details

Description

MP62550/MP62551 Power Distribution Switch is designed for precision current limiting and provides up to 1.5A continuous output current.

Features

Up to 1.5A Continuous Output Current.
±10% Current-Limit Accuracy.
Adjustable Current-Limit, 60mA -1700mA (typ).
Fast Over-current Response 2μs (typ).
2.5V to 5.5V Supply Range.
88mΩ MOSFET (TQFN Package).
1.5μA Maximum Standby Supply Current.
Reverse Input-Output Voltage Protection.
Built-in Soft-Start.
Thermal-Shutdown Protection.
Automatic-on after Fault Removed.
Under-Voltage Lockout.
Deglitched Fault Report ________.
FLA.
