MP4012DS - High-Current Accuracy WLED Controller

Download the MP4012DS datasheet PDF. This datasheet also covers the MP4012 variant, as both devices belong to the same high-current accuracy wled controller family and are provided as variant models within a single manufacturer datasheet.

Description

The MP4012 is a current mode controller designed for driving the high brightness Light Emitting Diodes (LEDs) from extremely wide input voltage 8V~55V.

It can be used in Boost, Buck, Buck-boost and SEPIC topologies.

Features

  • programmable slop compensation that can optimize the control loop regulation and avoid sub harmonic oscillation. The MP4012 implements high frequency PWM Dimming with external disconnect MOSFET. It achieves analog dimming by adjusting the feedback voltage. The MP4012 has synchronizing function, which makes multiple ICs synchronized to each other by connecting SYNC pins together. The MP4012 includes under-voltage lockout, over voltage protection, open and short hiccup mode protection, overload pr.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (MP4012-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

Part Number Description Manufacturer
MP401 (MP4005 - MP4010) Bridge Rectifier MCC
MP4010 (MP4005 - MP4010) Bridge Rectifier MCC
MP4010W Single Phase Bridge Rectifier MCC
MP4013 TOSHIBA Power Transistor Module Toshiba Semiconductor
MP401W Single Phase Bridge Rectifier MCC

Other Datasheets by Monolithic Power Systems

Part Number Description
MP4012 High-Current Accuracy WLED Controller
MP4000 White LED Driver Controller
MP4000DS White LED Driver Controller
MP4001 Universal Input High Brightness White LED Driver
MP4001DS Universal Input High Brightness White LED Driver

Full PDF Text Transcription

Click to expand full text

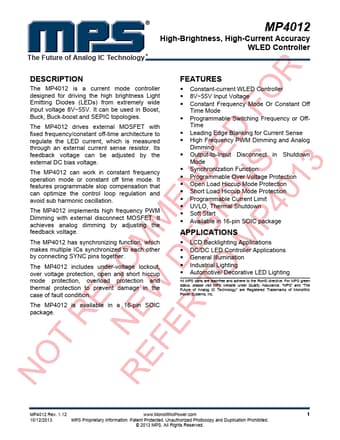

The Future of Analog IC Technology MP4012 High-Brightness, High-Current Accuracy WLED Controller DESCRIPTION The MP4012 is a current mode controller designed for driving the high brightness Light Emitting Diodes (LEDs) from extremely wide input voltage 8V~55V. It can be used in Boost, Buck, Buck-boost and SEPIC topologies. The MP4012 drives external MOSFET with fixed frequency/constant off-time architecture to regulate the LED current, which is measured through an external current sense resistor. Its feedback voltage can be adjusted by the external DC bias voltage. The MP4012 can work in constant frequency operation mode or constant off time mode. It features programmable slop compensation that can optimize the control loop regulation and avoid sub harmonic oscillation.
