MP3425 - 55V Boost Converter

Product Overview

MPS

Part number	MP3425
Manufacturer	MPS
File Size	767.29 KB
Description	55V Boost Converter
Datasheet	MP3425 Datasheet

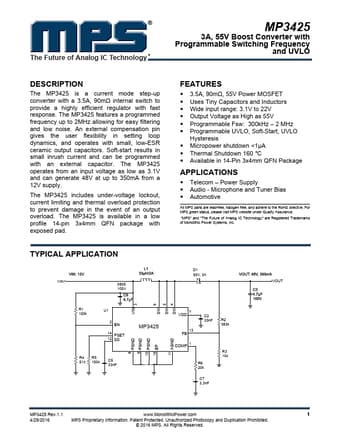

Additional preview pages of the MP3425 datasheet.

The MP3425 is a current mode step-up converter with a 3.5A, 90mΩ internal switch to provide a highly efficient regulator with fast response.

a programmed frequency up to 2MHz allowing for easy filtering and low noise. An external compensation pin gives the user flexibility in setting loop dynamics, and operates with small, low-ESR ceramic output capacitors. Soft-start results in small inrush current and can be programmed with an external capacitor. The MP3425 operates from an input voltage as low as 3.1V and can generate 48V at up to 350mA from a 12V supply. The MP3425 includes under-voltage lockout, current limiting and thermal over.
