MP3393EF, MP3393 - 8-String Step-Up White LED Driver

MPS

📥 Download Datasheet

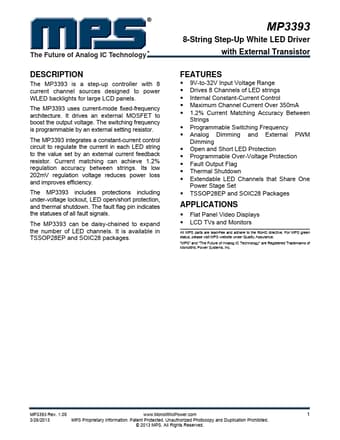

MP3393EF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP3393EF, MP3393. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3393EF, MP3393
Manufacturer	MPS
File Size	508.49 KB
Description	8-String Step-Up White LED Driver
Datasheet	MP3393-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP3393EF, MP3393. Please refer to the document for exact specifications by model.

MP3393EF Product details

Description

The MP3393 is a step-up controller with 8 current channel sources designed to power WLED backlights for large LCD panels.

Features

9V-to-32V Input Voltage Range.
Drives 8 Channels of LED strings.
Internal Constant-Current Control.
Maximum Channel Current Over 350mA.
1.2% Current Matching Accuracy Between Strings.
Programmable Switching Frequency.
Analog Dimming and External PWM Dimming.
Open and Short LED Protection.
Programmable Over-Voltage Protection.
Fault Output Flag.
Thermal Shutdown.
Extendable LED Channels th.
