MP3213 - 700KHz/1.3MHz Boost Converter

MPS

📥 Download Datasheet

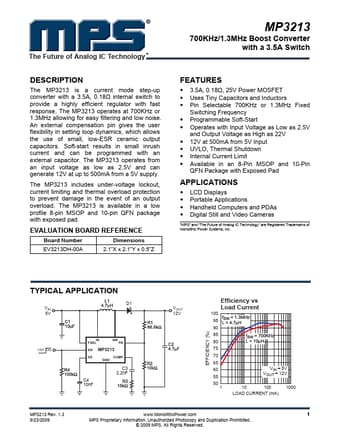

MP3213 Datasheet Preview — Preview of MP3213 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP3213
Manufacturer	MPS
File Size	344.98 KB
Description	700KHz/1.3MHz Boost Converter
Datasheet	MP3213-MPS.pdf

MP3213 Product details

Description

The MP3213 is a current mode step-up converter with a 3.5A, 0.18Ω internal switch to provide a highly efficient regulator with fast response.

Features

3.5A, 0.18Ω, 25V Power MOSFET.
Uses Tiny Capacitors and Inductors.
Pin Selectable 700KHz or 1.3MHz Fixed Switching Frequency.
Programmable Soft-Start.
Operates with Input Voltage as Low as 2.5V and Output Voltage as High as 22V.
12V at 500mA from 5V Input.
UVLO, Thermal Shutdown.
Internal Current Limit.
Available in an 8-Pin MSOP and 10-Pin QFN Package with Exposed Pad.
