MP2724 - 2.2A Buck Charger

Product Overview

MPS

📥 Download Datasheet

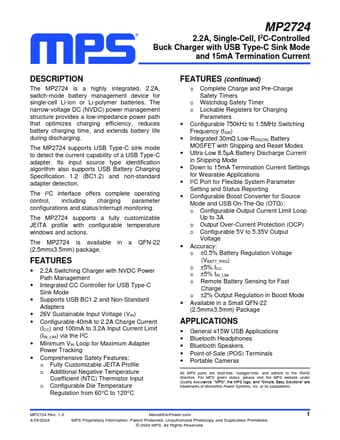

MP2724 2.2A Buck Charger by MPS - Datasheet Preview — Datasheet preview – MP2724

Datasheet Details

Part number	MP2724
Manufacturer	MPS
File Size	1.16 MB
Description	2.2A Buck Charger
Datasheet	MP2724 Datasheet
Additional preview pages of the MP2724 datasheet.

Product details

Description

The MP2724 is a highly integrated, 2.2A, switch-mode battery management device for single-cell Li-ion or Li-polymer batteries.

Features

2.2A Switching Charger with NVDC Power Path Management.
Integrated CC Controller for USB Type-C Sink Mode.
Supports USB BC1.2 and Non-Standard Adapters.
26V Sustainable Input Voltage (VIN).
Configurable 40mA to 2.2A Charge Current (ICC) and 100mA to 3.2A Input Current Limit (IIN_LIM) via the I2C.
Minimum VIN Loop for Maximum Adapter Power Tracking.
Comprehensive Safety Features: o Fully Customizable JEITA Profile o Additional Negati.
