MP2636 - 3.0A Single Cell Switch Mode Battery Charger

Product Overview

MPS

MP2636 3.0A Single Cell Switch Mode Battery Charger by MPS - Datasheet Preview — Datasheet preview – MP2636

Datasheet Details

Part number	MP2636
Manufacturer	MPS
File Size	1.26 MB
Description	3.0A Single Cell Switch Mode Battery Charger
Datasheet	MP2636 Datasheet

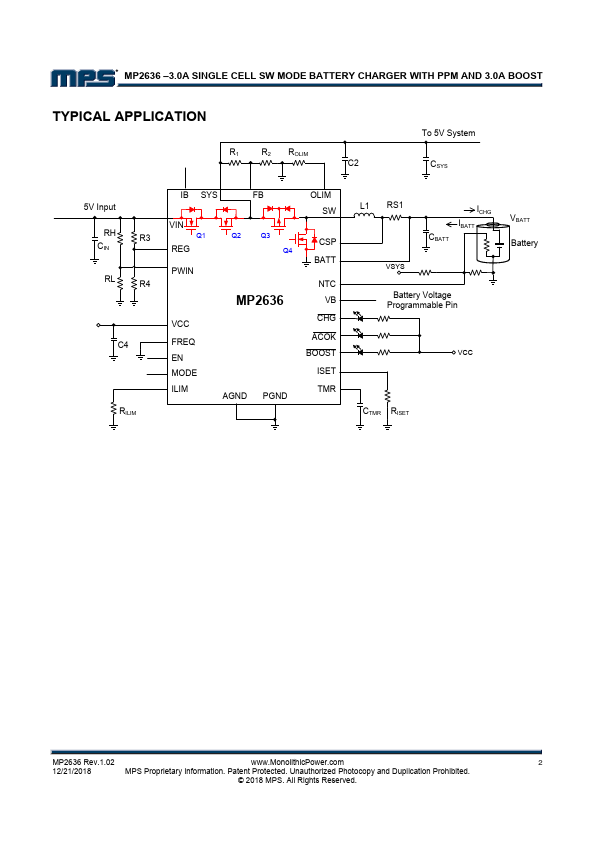

Additional preview pages of the MP2636 datasheet.

Product details

Description

The MP2636 is a highly-integrated, flexible switch-mode battery charger with system power path management, designed for single-cell Liion or Li-Polymer batteries used in a wide range of portable applications.

Features

include charge termination and auto-recharge. This device also integrates both input current limit and input voltage regulation in order to manage input power and meet the priority of the system power demand. In the absence of an input source, the MP2636 switches to boost mode through the MODE pin to power the SYS pins from the battery. The OLIM pin programs the output current limit in boost mode. The MP2636 also allows an output short circuit protection to completely disconnect the battery from.
