MP2626 - USB-Compliant Single Cell Li-ion Switching Charger

Product Overview

MPS

MP2626 USB-Compliant Single Cell Li-ion Switching Charger by MPS - Datasheet Preview — Datasheet preview – MP2626

Datasheet Details

Part number	MP2626
Manufacturer	MPS
File Size	1.01 MB
Description	USB-Compliant Single Cell Li-ion Switching Charger
Datasheet	MP2626 Datasheet

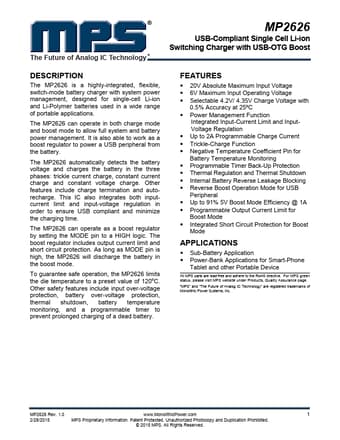

Additional preview pages of the MP2626 datasheet.

Product details

Description

The MP2626 is a highly-integrated, flexible, switch-mode battery charger with system power management, designed for single-cell Li-ion and Li-Polymer batteries used in a wide range of portable applications.

Features

include charge termination and autorecharge. This IC also integrates both inputcurrent limit and input-voltage regulation in order to ensure USB compliant and minimize the charging time. The MP2626 can operate as a boost regulator by setting the MODE pin to a HIGH logic. The boost regulator includes output current limit and short circuit protection. As long as MODE pin is high, the MP2626 will discharge the battery in the boost mode. To guarantee safe operation, the MP2626 limits the die tempera.
