MP26029GN, MP26029 - Li-Ion Battery Charger

Name: MP26029GN
SKU: MP26029GN-1548406

MPS

The MP26029GN by MPS is a Li-Ion Battery Charger. Below is the official datasheet preview.

Datasheet Details

Part number	MP26029GN, MP26029
Manufacturer	MPS
File Size	728.08 KB
Description	Li-Ion Battery Charger
Datasheet	MP26029-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP26029GN, MP26029. Please refer to the document for exact specifications by model.

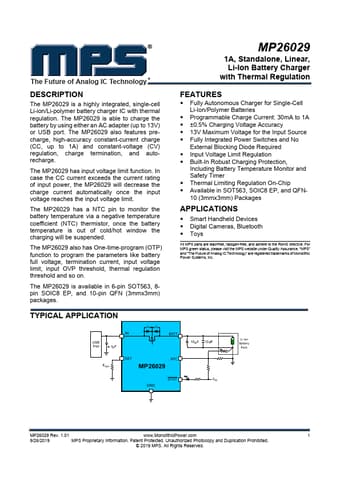

Additional preview pages of the MP26029GN datasheet.

The MP26029 is a highly integrated, single-cell Li-ion/Li-polymer battery charger IC with thermal regulation.

precharge, high-accuracy constant-current charge (CC, up to 1A) and constant-voltage (CV) regulation, charge termination, and autorecharge. The MP26029 has input voltage limit function. In case the CC current exceeds the current rating of input power, the MP26029 will decrease the charge current automatically once the input voltage reaches the input voltage limit. The MP26029 has a NTC pin to monitor the battery temperature via a negative temperature coefficient (NTC) thermistor, once the batter.
