MP24943 - 100kHz Step-Down Converter

MPS

The MP24943 by MPS is a 100kHz Step-Down Converter. Below is the official datasheet preview.

📥 Download Datasheet

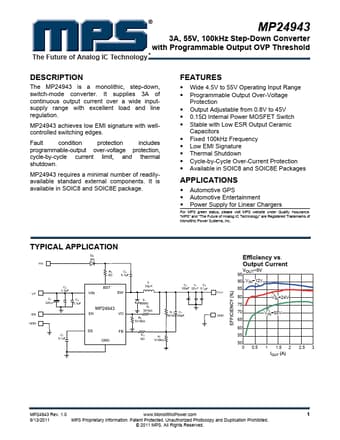

MP24943 100kHz Step-Down Converter by MPS - Datasheet Preview — Official preview page of the MP24943 100kHz Step-Down Converter datasheet (MPS).

Datasheet Details

Part number	MP24943
Manufacturer	MPS
File Size	631.51 KB
Description	100kHz Step-Down Converter
Datasheet	MP24943-MPS.pdf
Additional preview pages of the MP24943 datasheet.

MP24943 Product details

Description

The MP24943 is a monolithic, step-down, switch-mode converter.

Features

Wide 4.5V to 55V Operating Input Range.
Programmable Output Over-Voltage Protection.
Output Adjustable from 0.8V to 45V.
0.15Ω Internal Power MOSFET Switch.
Stable with Low ESR Output Ceramic Capacitors.
Fixed 100kHz Frequency.
Low EMI Signature.
Thermal Shutdown.
Cycle-by-Cycle Over-Current Protection.
Available in SOIC8 and SOIC8E Packages.
