MP2223 - Step-Down Converter

MPS

📥 Download Datasheet

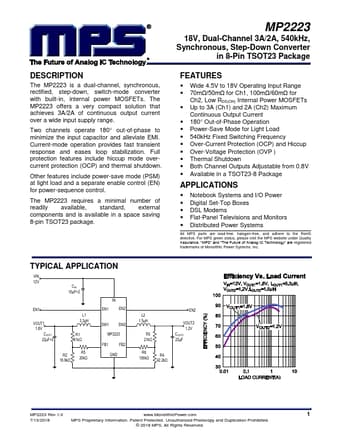

MP2223 Datasheet Preview — Preview of MP2223 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MP2223
Manufacturer	MPS
File Size	1.67 MB
Description	Step-Down Converter
Datasheet	MP2223-MPS.pdf

MP2223 Product details

Description

The MP2223 is a dual-channel, synchronous, rectified, step-down, switch-mode converter with built-in, internal power MOSFETs.

Features

include hiccup mode overcurrent protection (OCP) and thermal shutdown. Other features include power-save mode (PSM) at light load and a separate enable control (EN) for power-sequence control. The MP2223 requires a minimal number of readily available, standard, external components and is available in a space saving 8-pin TSOT23 package.
