MP2182 - 2A Synchronous Step-Down Converter

Product Overview

MPS

📥 Download Datasheet

MP2182 2A Synchronous Step-Down Converter by MPS - Datasheet Preview — Datasheet preview – MP2182

Datasheet Details

Part number	MP2182
Manufacturer	MPS
File Size	1.05 MB
Description	2A Synchronous Step-Down Converter
Datasheet	MP2182 Datasheet

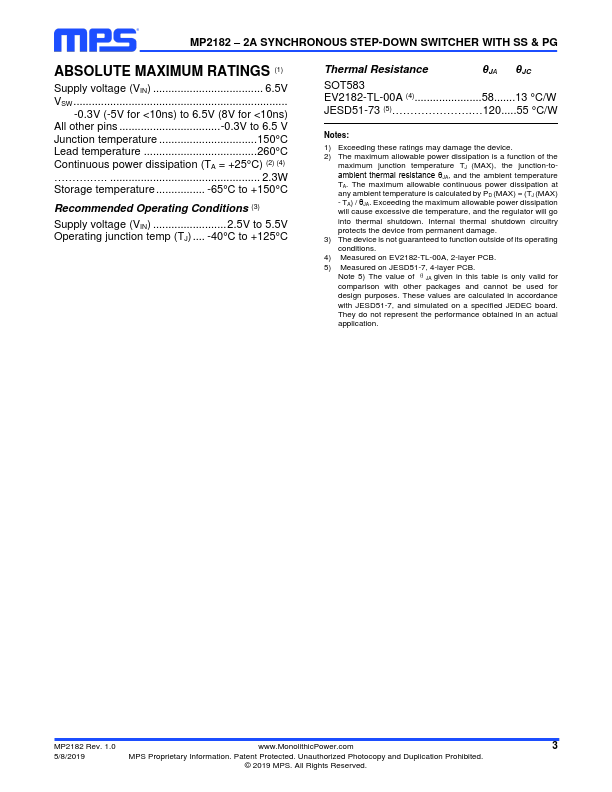

Additional preview pages of the MP2182 datasheet.

Product details

Description

The MP2182 is a monolithic, step-down, switchmode converter with built-in internal power MOSFETs.

Features

Low IQ: 21μA.
1.2MHz Switching Frequency.
EN for Power Sequencing.
1% FB Accuracy.
Wide 2.5V to 5.5V Operating Input Range.
Output Adjustable from 0.6V.
Up to 2A Output Current.
80mΩ and 40mΩ Internal Power MOSFET Switches.
100% Duty On.
Output Discharge.
VO OVP.
External Soft-Start Control.
Short-Circuit Protection with Hiccup Mode.
Power Good.
Available in a SOT583 Package.
