MP2130 Datasheet PDF (1.2MHz Synchronous Step-Down Converter)

MP2130 - 1.2MHz Synchronous Step-Down Converter

Description

MOSFETs.

excellent load and line regulation.

Features

Above 95% Peak Efficiency.
Above 80% Light Load Efficiency.
Wide 2.7V to 6V Operating Input Range.
Output Voltage as Low as 0.6V.
100% Duty Cycle in Dropout.
3.5A Output Current.
50mΩ and 40mΩ Internal Power MOSFET.
1.2MHz Frequency.
EN and Power Good for Power Sequencing.
Cycle-by-Cycle Over Current Protection.
Auto Discharge at Power-off.
Short Circuit Protection with Hiccup Mode.
Thermal Shutdown.
Stable with Low ESR Outp.

Datasheet Details

Part number	MP2130
Manufacturer	Monolithic Power Systems
File Size	802.90 KB
Description	1.2MHz Synchronous Step-Down Converter
Datasheet	MP2130 Datasheet

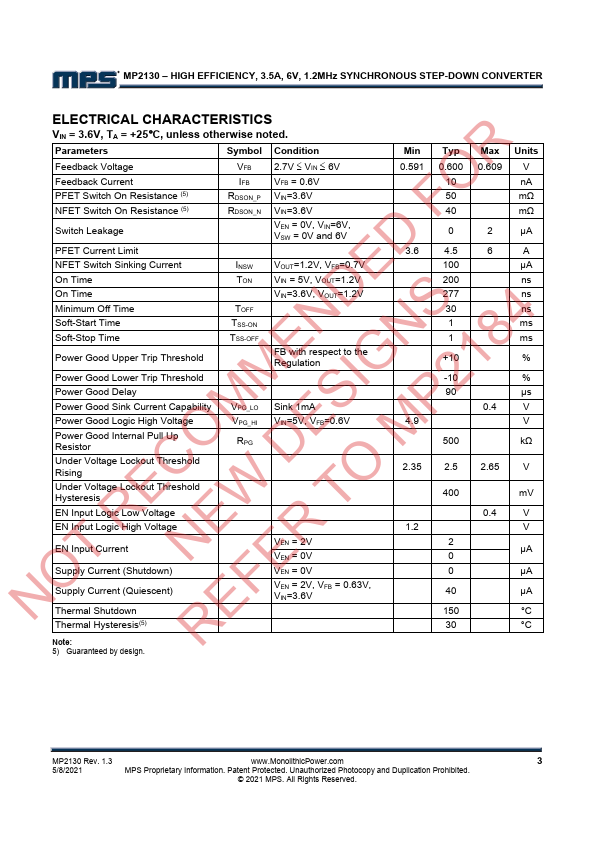

Additional preview pages of the MP2130 datasheet.

📁 Similar Datasheet

MP2103K3C10 - Safety Standard Capacitor (ETC)

MP2104K3C30 - Safety Standard Capacitor (ETC)

MP2104K3D20 - Safety Standard Capacitor (ETC)

MP2105K3E60 - Safety Standard Capacitor (ETC)

MP2105K3F20 - Safety Standard Capacitor (ETC)

MP2123K3C10 - Safety Standard Capacitor (ETC)

MP2124K3D20 - Safety Standard Capacitor (ETC)

MP2125K3F30 - Safety Standard Capacitor (ETC)

MP2125K3TB0 - Safety Standard Capacitor (ETC)

MP2153K3C10 - Safety Standard Capacitor (ETC)

Full PDF Text Transcription

Click to expand full text

MP2130 High Efficiency, 3.5A, 6V, 1.2MHz Synchronous Step-Down Converter in an The Future of Analog IC Technology Ultra–Small QFN12 (2x2mm) Package R DESCRIPTION The MP2130 is a monolithic step-down switch O mode converter with built-in internal power MOSFETs. It achieves 3.5A continuous output F current from a 2.7V to 6V input voltage with excellent load and line regulation. The MP2130 is ideal for powering portable equipment that runs D from a single cell Lithium-Ion (Li+) Battery. The output voltage can be regulated as low as 0.6V. E The Constant-On-time (COT) control scheme provides fast transient response high light-load D efficiency and easy loop stabilization. N S 4 Fault condition protection includes cycle-by-cycle current limit and thermal shutdown.
