MP1601AGTF, MP1601A - 1A Synchronous Step-down Converter

MPS

📥 Download Datasheet

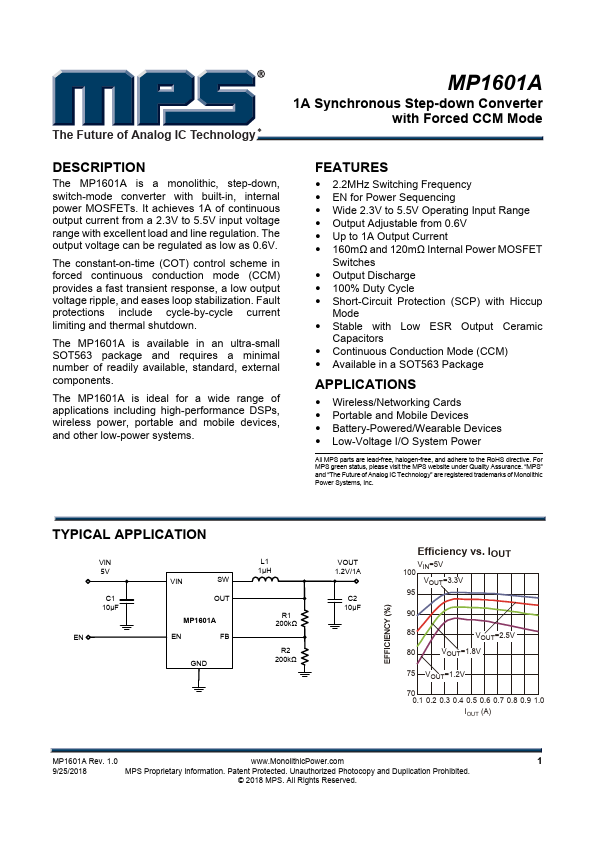

MP1601AGTF Datasheet Preview — This datasheet PDF includes multiple part numbers: MP1601AGTF, MP1601A. Please refer to the document for exact specifications by model.

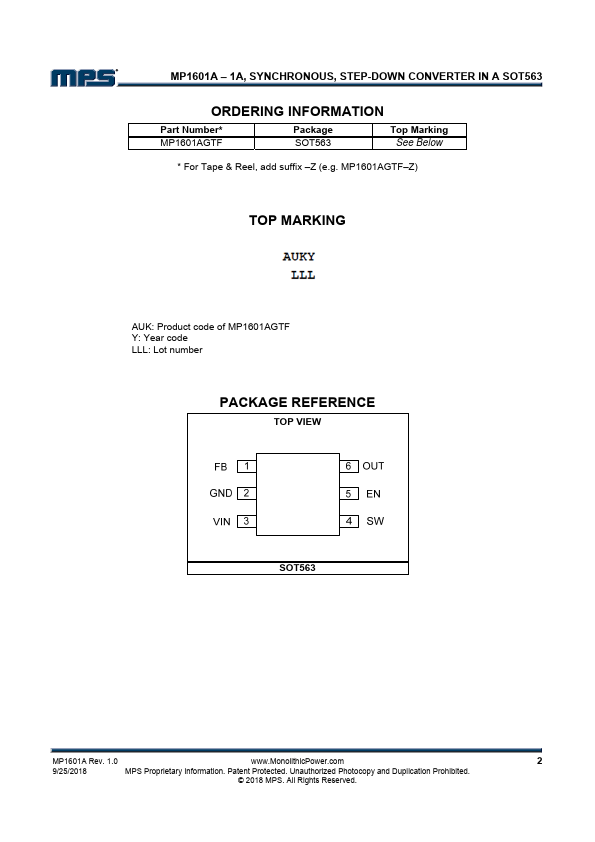

datasheet Preview Page 2

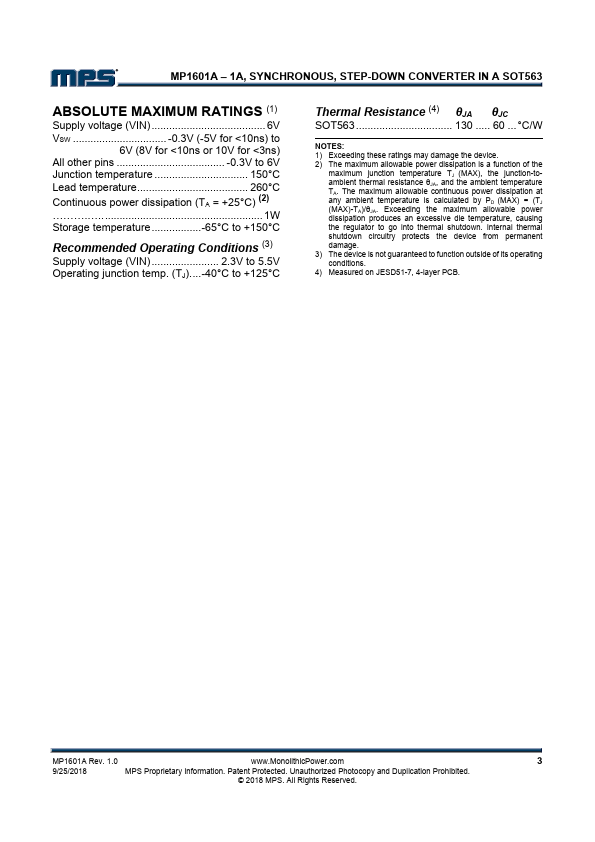

datasheet Preview Page 3

Datasheet Details

Part number	MP1601AGTF, MP1601A
Manufacturer	MPS
File Size	592.07 KB
Description	1A Synchronous Step-down Converter
Datasheet	MP1601A-MPS.pdf
Note	This datasheet PDF includes multiple part numbers: MP1601AGTF, MP1601A. Please refer to the document for exact specifications by model.

MP1601AGTF Product details

Description

The MP1601A is a monolithic, step-down, switch-mode converter with built-in, internal power MOSFETs.

Features

2.2MHz Switching Frequency.
EN for Power Sequencing.
Wide 2.3V to 5.5V Operating Input Range.
Output Adjustable from 0.6V.
Up to 1A Output Current.
160mΩ and 120mΩ Internal Power MOSFET Switches.
Output Discharge.
100% Duty Cycle.
Short-Circuit Protection (SCP) with Hiccup Mode.
Stable with Low ESR Output Ceramic Capacitors.
Continuous Conduction Mode (CCM).
Available in a SOT563 Package.
