MP020A-5 - Primary-Side Regulator

Product Overview

MPS

MP020A-5 Primary-Side Regulator by MPS - Datasheet Preview — Datasheet preview – MP020A-5

Datasheet Details

Part number	MP020A-5
Manufacturer	MPS
File Size	1.33 MB
Description	Primary-Side Regulator
Datasheet	MP020A-5 Datasheet

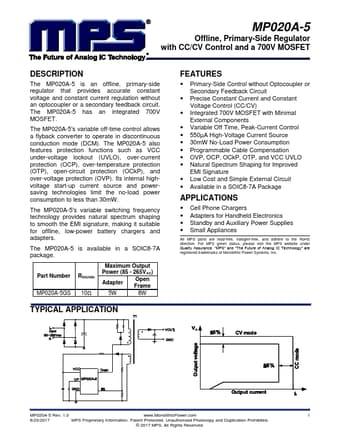

Additional preview pages of the MP020A-5 datasheet.

Product details

Description

The MP020A-5 is an offline, primary-side regulator that provides accurate constant voltage and constant current regulation without an optocoupler or a secondary feedback circuit.

Features

protection functions such as VCC under-voltage lockout (UVLO), over-current protection (OCP), over-temperature protection (OTP), open-circuit protection (OCkP), and over-voltage protection (OVP). Its internal highvoltage start-up current source and powersaving technologies limit the no-load power consumption to less than 30mW. The MP020A-5's variable switching frequency technology provides natural spectrum shaping to smooth the EMI signature, making it suitable for offline, low-power battery ch.
