HR1001AGS, HR1001A Enhanced LLC Controller

HR1001AGS Description

The Future of Analog IC Technology .
HR1001A is the OCP auto-recovery version of HR1001B.

HR1001AGS Features

* of adaptive dead-time adjustment (ADTA) and capacitive mode protection (CMP). The adaptive dead-time adjustment inserts a dead time between the two complimentary gate outputs automatically. This is ensured by keeping the outputs off while sensing the dv/dt current of the half-bridge switching node.

HR1001AGS Applications

* LCD and PDP TVs
* Desktop PCs and Servers
* Telecom SMPS
* AC/DC Adapter, Open-Frame SMPS
* Video Game Consoles
* Electronic Lighting Ballast All MPS parts are lead-free, halogen-free, and adhere to the RoS directive. For MPS green status, please vis

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HR1001AGS, HR1001A. Please refer to the document for exact specifications by model.

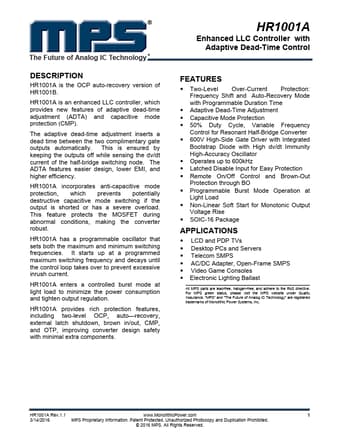

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HR1001AGS, HR1001A
Manufacturer
MPS
File Size
1.39 MB
Datasheet
HR1001A-MPS.pdf
Description
Enhanced LLC Controller
Note
This datasheet PDF includes multiple part numbers: HR1001AGS, HR1001A.
Please refer to the document for exact specifications by model.
