HFC0310GS - Programmable Fixed-Frequency Flyback Controller

Download the HFC0310GS datasheet PDF (HFC0310 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for programmable fixed-frequency flyback controller.

Description

The HFC0310 is a flyback controller with programmable fixed-frequency operation.

The controller uses peak current mode to provide excellent transient response and ease loop compensation.

Features

  • Programmable switching frequency up to 600kHz.
  • Frequency shaping.
  • Current-mode operation.
  • Very low start-up current.
  • Very low standby power consumption via active-burst mode.
  • Internal leading-edge blanking.
  • Built-in soft-start function.
  • Internal slope compensation.
  • External protection with recovery hysteresis on PRO pin.
  • Over-temperature protection.
  • VCC under-voltage lockout with hysteresis.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (HFC0310-MPS.pdf) that lists specifications for multiple related part numbers.

📁 Similar Datasheet

  • HFC1005 - high frequency ceramic capacitor (KOA)
  • HFC1410 - high frequency ceramic capacitor (KOA)
  • HFC1608 - high frequency ceramic capacitor (KOA)
  • HFC1610 - high frequency ceramic capacitor (KOA)
  • HFC1612 - high frequency ceramic capacitor (KOA)
  • HFC1N60 - N-Channel MOSFET (SemiHow)
  • HFC1N70 - N-Channel MOSFET (SemiHow)
  • HFC1N80 - N-Channel MOSFET (SemiHow)
  • HFC2N60U - 600V N-Channel MOSFET (SemiHow)
  • HFCN-1000+ - High Pass Filter (Mini-Circuits)
Other Datasheets by MPS
  • HFC0310 - Programmable Fixed-Frequency Flyback Controller
  • HFC0300 - Variable Off Time Controller
  • HFC0300HS - Variable Off Time Controller
  • HFC0100 - Quasi-Resonant Controller
  • HFC0500 - Fixed Frequency Flyback Controller
  • HFC0500GS - Fixed Frequency Flyback Controller
  • HFC0511 - Fixed-Frequency Flyback Controller
  • HFC0511GS - Fixed-Frequency Flyback Controller

Full PDF Text Transcription

Click to expand full text

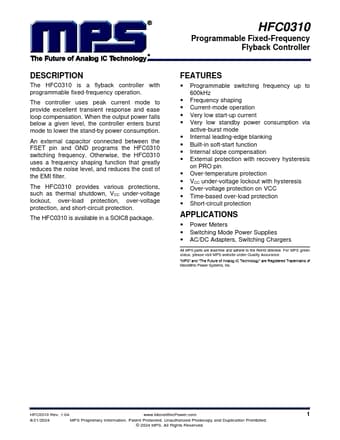

HFC0310 Programmable Fixed-Frequency Flyback Controller DESCRIPTION The HFC0310 is a flyback controller with programmable fixed-frequency operation. The controller uses peak current mode to provide excellent transient response and ease loop compensation. When the output power falls below a given level, the controller enters burst mode to lower the stand-by power consumption. An external capacitor connected between the FSET pin and GND programs the HFC0310 switching frequency. Otherwise, the HFC0310 uses a frequency shaping function that greatly reduces the noise level, and reduces the cost of the EMI filter. The HFC0310 provides various protections, such as thermal shutdown, VCC under-voltage lockout, over-load protection, over-voltage protection, and short-circuit protection.
