ADC324 - Single & Dual Output DC/DC Converters

Download the ADC324 datasheet PDF (ADC300 included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single & dual output dc/dc converters.

Features

  • Efficiency up to 83% 1000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12 and 24VDC Output 3.3, 5, 12, 15, ±5, ±12 and ±15VDC Temperature Performance -40°C to +85°C UL 94V-0 Package Material Internal SMD Construction Industry Standard Pinout 12 (10.8.
  • 13.2) 24 (21.6.
  • 26.4) MPS Industries ADC300 DC/DC's are specially designed to provide higher power to 2W in a miniatur.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (ADC300_MPSIndustries.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number ADC324
Manufacturer MPS Industries
File Size 222.35 KB
Description Single & Dual Output DC/DC Converters
Datasheet download datasheet ADC324 Datasheet

📁 Similar Datasheet

  • ADC3241 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3242 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3243 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3244 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3214 - High Speed 14-Bit 1MHz Sampling A/D Converter (Analogic Corporation)
  • ADC3221 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3222 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3223 - Analog-to-Digital Converter (Texas Instruments)
  • ADC3224 - Analog-to-Digital Converter (Texas Instruments)
  • ADC32J22 - Analog-to-Digital Converter (Texas Instruments)
Other Datasheets by MPS Industries
  • ADC321 - Single & Dual Output DC/DC Converters
  • ADC322 - Single & Dual Output DC/DC Converters
  • ADC323 - Single & Dual Output DC/DC Converters
  • ADC325 - Single & Dual Output DC/DC Converters
  • ADC326 - Single & Dual Output DC/DC Converters
  • ADC327 - Single & Dual Output DC/DC Converters
  • ADC300 - Single & Dual Output DC/DC Converters
  • ADC301 - Single & Dual Output DC/DC Converters

Full PDF Text Transcription

Click to expand full text

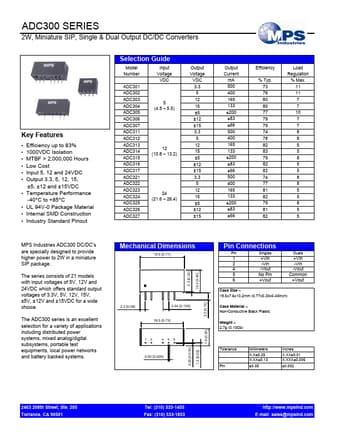

www.DataSheet.co.kr ADC300 SERIES 2W, Miniature SIP, Single & Dual Output DC/DC Converters Selection Guide Model Number ADC301 ADC302 ADC303 ADC304 ADC305 ADC306 ADC307 ADC311 ADC312 ADC313 ADC314 ADC315 ADC316 ADC317 ADC321 ADC322 ADC323 ADC324 ADC325 ADC326 ADC327 Input Voltage VDC Output Voltage VDC 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 3.3 5 12 15 ±5 ±12 ±15 Output Current mA 500 400 165 133 ±200 ±83 ±66 500 400 165 133 ±200 ±83 ±66 500 400 165 133 ±200 ±83 ±66 Efficiency % Typ. 73 76 80 80 77 79 79 74 78 82 83 79 82 82 74 77 81 82 79 81 82 Load Regulation % Max. 11 11 7 7 10 7 7 8 8 5 5 8 5 5 8 8 5 5 8 5 5 5 (4.5 – 5.5) Key Features • • • • • • • • • • Efficiency up to 83% 1000VDC Isolation MTBF > 2,000,000 Hours Low Cost Input 5, 12 and 24VDC Output 3.
