MBR3060F, MBR3060A - 30A SCHOOTKY BARRIER RECTIFIER

MOT

The MBR3060F by MOT is a 30A SCHOOTKY BARRIER RECTIFIER. Below is the official datasheet preview.

📥 Download Datasheet

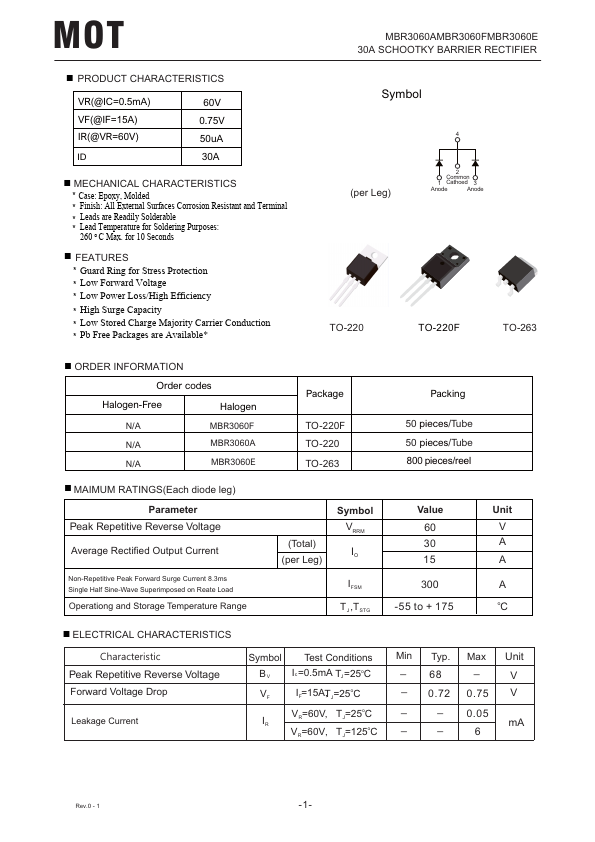

MBR3060F 30A SCHOOTKY BARRIER RECTIFIER by MOT - Datasheet Preview — Official preview page of the MBR3060F 30A SCHOOTKY BARRIER RECTIFIER datasheet (MOT).

Datasheet Details

Part number	MBR3060F, MBR3060A
Manufacturer	MOT
File Size	2.86 MB
Description	30A SCHOOTKY BARRIER RECTIFIER
Datasheet	MBR3060A-MOT.pdf
Note	This datasheet PDF includes multiple part numbers: MBR3060F, MBR3060A. Please refer to the document for exact specifications by model.

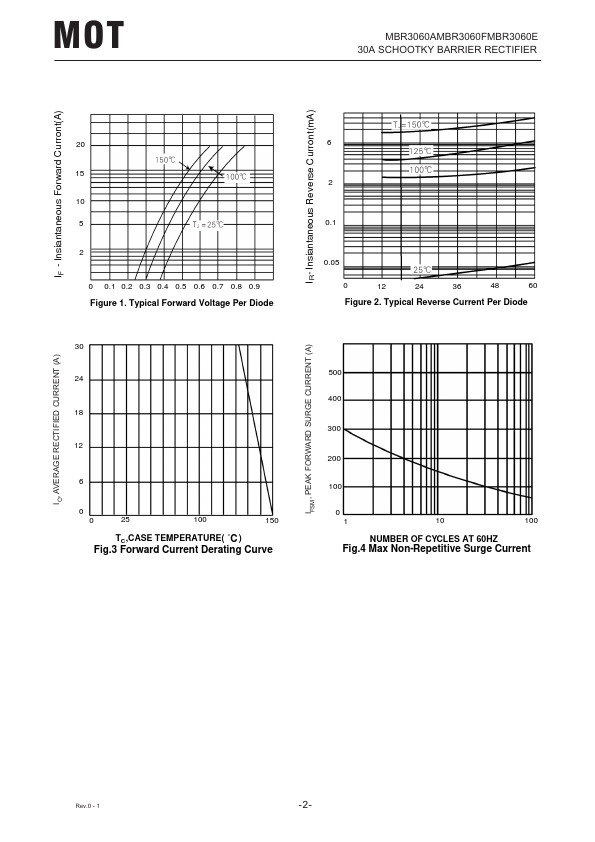

Additional preview pages of the MBR3060F datasheet.

MBR3060F Product details

Features

Guard Ring for Stress Protection.
Low Forward Voltage.
Low Power Loss/High Efficiency.
High Surge Capacity.
Low Stored Charge Majority Carrier Conduction.
Pb Free Packages are Available.
Symbol 4 (per Leg) 2 Common 1 Cathoed 3 Anode Anode TO-220 TO-220F TO-263.
ORDER.
