RS601 SINGLE-PHASE BRIDGE RECTIFIER

RS601 Description

MOSPEC SINGLE-PHASE BRIDGE RECTIFIER VOLTAGE RANGE 50 to 1000 Volts CURRENT 6.0 Ampere .

RS601 Features

* Low cost High forward surge current capability Ideal for printed circuit board High temperature soldering guaranteed: 260oc/10 second,0.375”(9.5mm)lead length at 5 lbs. (2.3kg) tension. MECHANICAL DATA Case: Transfer molded plastic Epoxy: UL94V-O rate flame retardant Terminals Lead Solderable Per M

📥 Download Datasheet

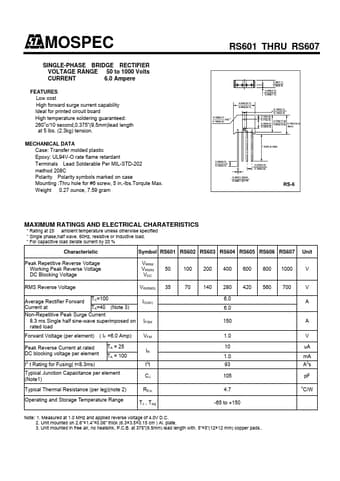

Preview of RS601 PDF
datasheet Preview Page 2

Datasheet Details

Part number
RS601
Manufacturer
MOSPEC
File Size
94.90 KB
Datasheet
RS601-MOSPEC.pdf
Description
SINGLE-PHASE BRIDGE RECTIFIER
