M1351 - 1-OR 2-KEY ON/OFF & PAUSE RGB LED IC

Product Overview

MOSDESIGN

Part number	M1351
Manufacturer	MOSDESIGN
File Size	115.54 KB
Description	1-OR 2-KEY ON/OFF & PAUSE RGB LED IC

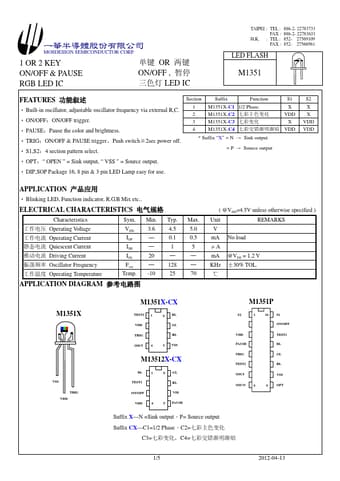

Datasheet	M1351 Datasheet
Additional preview pages of the M1351 datasheet.

‧ Built-in oscillator, adjustable oscillator frequency via external R,C. ‧ ON/OFF：ON/OFF trigger. ‧ PAUSE：Pause the color and brightness. ‧ TRIG：ON/OFF & PAUSE trigger，Push switch≧2sec power off. ‧ S1,S2：4 section pattern select. Section Suffix Function 1 M1351X-C1 1/2 Phase. 2 M1351X-C2 3 M1351X-C3 4 M1351X-C4.
Suffix “X” = N → Sink output = P → Source output S1 X VDD X VDD ‧ OPT：“ OPEN ” = Sink output, “ VSS ” = Source output. ‧ DIP,SOP Package 16, 8 pin & 3 pin LED Lamp easy.
