SYS32512ZK-015, SYS32512LK-010 - 512 K x 32 Static RAM

Name: SYS32512ZK-015
SKU: SYS32512ZK-015-650193

📥 Download Datasheet

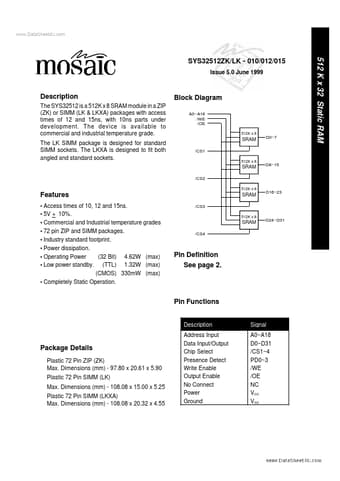

SYS32512ZK-015 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYS32512ZK-015, SYS32512LK-010. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	SYS32512ZK-015, SYS32512LK-010
Manufacturer	MOSAIC
File Size	297.30 KB
Description	512 K x 32 Static RAM
Datasheet	SYS32512LK-010_MOSAIC.pdf
Note	This datasheet PDF includes multiple part numbers: SYS32512ZK-015, SYS32512LK-010. Please refer to the document for exact specifications by model.

SYS32512ZK-015 Product details

Description

The SYS32512 is a 512K x 8 SRAM module in a ZIP (ZK) or SIMM (LK & LKXA) packages with access times of 12 and 15ns, with 10ns parts under development.

Features

Access times of 10, 12 and 15ns.
5V + 10%.
Commercial and Industrial temperature grades.
72 pin ZIP and SIMM packages.
Industry standard footprint.
Power dissipation.
Operating Power (32 Bit) 4.62W (max).
Low power standby. (TTL) 1.32W (max) (CMOS) 330mW (max).
Completely Static Operation. /CS3 SRAM D16~23 512K x 8 SRAM /CS4 D24~D31 Pin Definition See page 2. Pin Functions.
