SYS32256LK-12 - 256K x 32 SRAM MODULE

The SYS32256LK-12 by MOSAIC is a 256K x 32 SRAM MODULE. Below is the official datasheet preview.

Datasheet Details

Part number	SYS32256LK-12
Manufacturer	MOSAIC
File Size	92.23 KB
Description	256K x 32 SRAM MODULE
Datasheet	SYS32256LK-12_MOSAIC.pdf

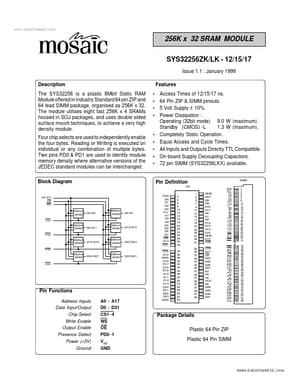

Additional preview pages of the SYS32256LK-12 datasheet.

The SYS32256 is a plastic 8Mbit Static RAM Module offered in Industry Standard 64 pin ZIP and 64 lead SIMM package, organised as 256K x 32.

Access Times of 12/15/17 ns. 64 Pin ZIP & SIMM pinouts. 5 Volt Supply ± 10%. Power Dissipation : Operating (32bit mode) 9.0 W (maximum). Standby (CMOS) -L 1.3 W (maximum). Completely Static Operation. Equal Access and Cycle Times. All Inputs and Outputs Directly TTL Compatible. On-board Supply Decoupling Capacitors. 72 pin SIMM (SYS32256LKX) available.
Pin Definition ZIP PD0 D0 D1 D2 D3 Vcc A7 A8 A9 D4 D5.
