MT6405, MT6405-MOS - P-Channel Power MOSFET

Name: MT6405
SKU: MT6405-1107587

MOS-TECH

📥 Download Datasheet

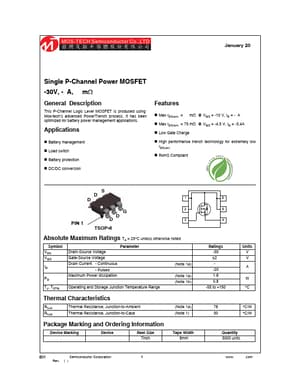

MT6405 Datasheet Preview — This datasheet PDF includes multiple part numbers: MT6405, MT6405-MOS. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	MT6405, MT6405-MOS
Manufacturer	MOS-TECH
File Size	534.35 KB
Description	P-Channel Power MOSFET
Datasheet	MT6405-MOS-TECH.pdf
Note	This datasheet PDF includes multiple part numbers: MT6405, MT6405-MOS. Please refer to the document for exact specifications by model.

MT6405 Product details

Description

This P-Channel Logic Level MOSFET is produced using Mos-tech's advanced PowerTrench process. Battery management Load switch Battery protection DC/DC conversion

Features

Max rDS(on) = mΩ @ VGS = -10 V, ID = -A.
Max rDS(on) = 75 mΩ @ VGS = -4.5 V, ID = -3.4A.
Low Gate Charge.
High performance trench technology for extremely low rDS(on).
RoHS Compliant S D D 16 PIN 1 G DD TSOP-6 2 3 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol VDS VGS ID PD TJ, TSTG Drain-Source Voltage Parameter Gate-Source Voltage Drain Current - Continuous - Pulsed Maximum Power dissipation Operating and Storage.
