WRA2405D-10W - DUAL/SINGLE OUTPUT DC-DC CONVERTER

Download the WRA2405D-10W datasheet PDF. This datasheet also covers the WRA0505D-10W variant, as both devices belong to the same dual/single output dc-dc converter family and are provided as variant models within a single manufacturer datasheet.

Features

  • 2:1 wide input voltage range.
  • DIP package.
  • Efficiency up to 85%.
  • 1.5KVDC input/output Isolation.
  • Short circuit protection (automatic recovery).
  • Operating temperature: -40°C to +85°C.
  • Metal shielding package.
  • No heat sink required.
  • Industry standard pinout.
  • MTBF>1,000,000 hours.
  • RoHS Compliance.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (WRA0505D-10W-MORNSUN.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number WRA2405D-10W
Manufacturer MORNSUN
File Size 317.44 KB
Description DUAL/SINGLE OUTPUT DC-DC CONVERTER
Datasheet download datasheet WRA2405D-10W Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
WRA2405D-2W DC-DC CONVERTER YUAN
WRA2405D-3W DC-DC CONVERTER YUAN
WRA2405D-4W DC-DC CONVERTER YUAN
WRA2405D-5W DC-DC CONVERTER YUAN
WRA2405S-2W DC/DC CONVERTER REICU

Other Datasheets by MORNSUN

Part Number Description
WRA2405CS-3W DUAL/SINGLE OUTPUT DC-DC CONVERTER
WRA2405P-3WR2 DC/DC Converter
WRA2405S-3WR2 DC/DC Converter
WRA2405ZP-3WR2 DC/DC Converter
WRA2405ZP-6W DUAL/SINGLE OUTPUT DIP DC-DC CONVERTER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

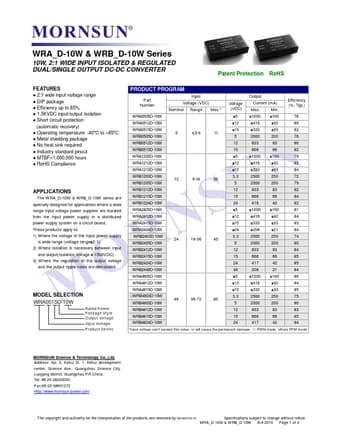

WRA_D-10W & WRB_D-10W Series 10W, 2:1 WIDE INPUT ISOLATED & REGULATED DUAL/SINGLE OUTPUT DC-DC CONVERTER Patent Protection RoHS FEATURES ● 2:1 wide input voltage range ● DIP package ● Efficiency up to 85% ● 1.5KVDC input/output Isolation ● Short circuit protection (automatic recovery) ● Operating temperature: -40°C to +85°C ● Metal shielding package ● No heat sink required ● Industry standard pinout ● MTBF>1,000,000 hours ● RoHS Compliance APPLICATIONS The WRA_D-10W & WRB_D-10W series are specially designed for applications where a wide range input voltage power supplies are isolated from the input power supply in a distributed power supply system on a circuit board.
