TD502D232H - Industrial Bus

MORNSUN

📥 Download Datasheet

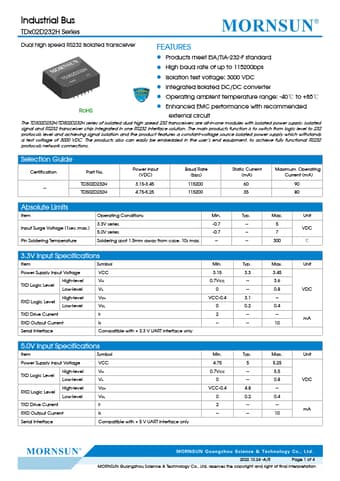

TD502D232H Datasheet Preview — Preview of TD502D232H PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TD502D232H
Manufacturer	MORNSUN
File Size	1.07 MB
Description	Industrial Bus
Datasheet	TD502D232H-MORNSUN.pdf

TD502D232H Product details

Features

Products meet EIA/TIA-232-F standard.
High baud rate of up to 115200bps.
Isolation test voltage: 3000 VDC.
Integrated isolated DC/DC converter.
Operating ambient temperature range: -40℃ to +85℃ RoHS.
Enhanced EMC performance with recommended external circuit The TD302D232H/TD502D232H series of isolated dual high speed 232 transceivers are all-in-one modules with isolated power supply, isolated signal and RS232 transceiver chip integrated in one RS232 inter.
