TD312P485 - Industrial Bus

MORNSUN

📥 Download Datasheet

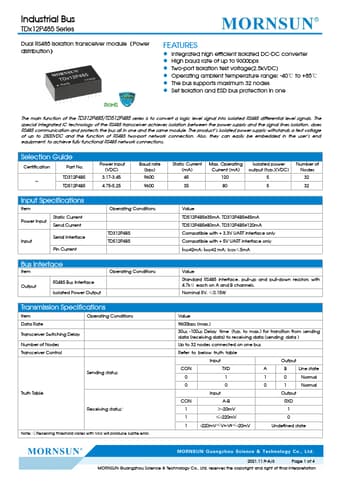

TD312P485 Datasheet Preview — Preview of TD312P485 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	TD312P485
Manufacturer	MORNSUN
File Size	1.07 MB
Description	Industrial Bus
Datasheet	TD312P485-MORNSUN.pdf

TD312P485 Product details

Features

Integrated high efficient isolated DC-DC converter.
High baud rate of up to 9600bps.
Two-port isolation test voltage(2.5kVDC).
Operating ambient temperature range: -40℃ to +85℃.
The bus supports maximum 32 nodes.
Set isolation and ESD bus protection in one RoHS The main function of the TD312P485/TD512P485 series is to convert a logic level signal into isolated RS485 differential level signals. The special integrated IC technology of the RS485 transceiver achieves.
